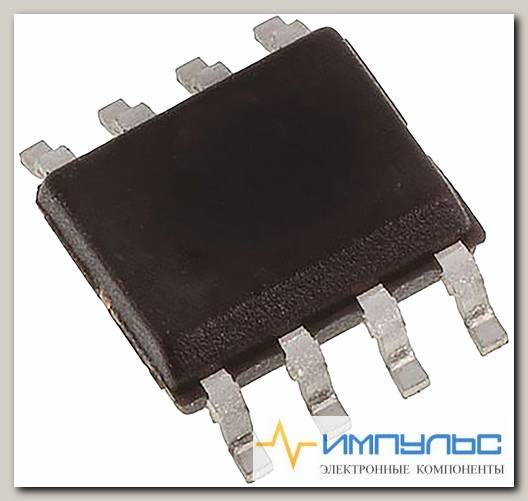

MCP6542-I/SN /Код si-378666

COMPARATOR, DUAL, PUSH PULL, SOIC-8; Comparator Type:Sub-Microamp; No. of Comparators:2 Comparators; Response Time:-; Supply Voltage Range:1.6V to 5.5V; Comparator Case Style:SOIC; No. of Pins:8Pins; IC Output Type:Push Pull; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; Product Range:MCP6541; MCP6541R; MCP6541U; MCP6542; MCP6543; MCP6544; Automotive Qualification Standard:-; MSL:-; SVHC:No SVHC (27-Jun-2018); No. of Comparators:2

Brand	Microchip Technology
CMRR - Common Mode Rejection Ratio	70 dB
Factory Pack Quantity	100
GBP - Gain Bandwidth Product	-
Height	1.25 mm(Min)
Ib - Input Bias Current	1 pA
Ios - Input Offset Current	1 pA
Length	4.9 mm
Manufacturer	Microchip
Maximum Operating Temperature	+85 C
Minimum Operating Temperature	-40 C
Mounting Style	SMD/SMT
Number of Channels	2 Channel
Operating Supply Current	1 mA
Operating Supply Voltage	5.5 V
Output Current per Channel	2 mA
Output Type	Push-Pull
Package / Case	SOIC-8
Packaging	Tube
Product	Analog Comparators
Product Category	Analog Comparators
PSRR - Power Supply Rejection Ratio	80 dB
Reference Voltage	Yes
Response Time	4 us
RoHS	Details
Series	MCP654
Shutdown	No Shutdown
Supply Type	Single
Supply Voltage - Max	5.5 V
Supply Voltage - Min	1.6 V
Technology	CMOS
Type	Comparator
Unit Weight	0.019048 oz
Vcm - Common Mode Voltage	Negative Rail-0.3 V to Positive Rail+0.3 V
Vos - Input Offset Voltage	7 mV
Width	3.9 mm
Comparator Type	Low Power
Mounting Type	Surface Mount
Number of Channels per Chip	2
Package Type	SOIC
Pin Count	8
Power Supply Type	Single
Typical CMRR	70dB
Typical PSRR	80dB
Typical Single Supply Voltage	1.6 > 5.5 V
