MCP6546T-I/OT /Код si-374078
- Артикул: si-374078

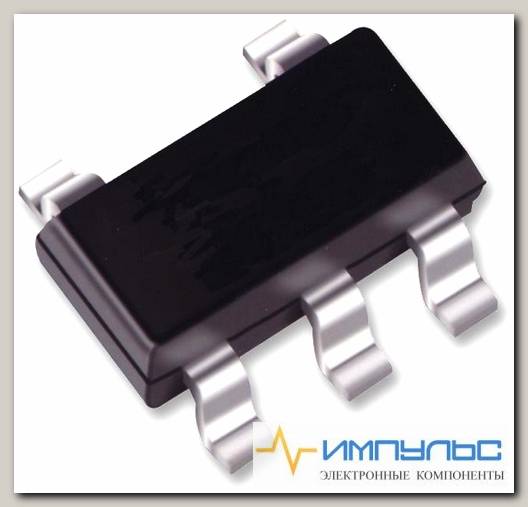

MCP6546 Series 5.5 V 1 pA Open-Drain Output Sub-Microamp Comparator - SOT-23-5
| Base Part Number | MCP6546 |
| CMRR, PSRR (Typ) | 70dB CMRR, 80dB PSRR |
| Current - Input Bias (Max) | 1pA 5.5V |
| Current - Output (Typ) | 30mA |
| Current - Quiescent (Max) | 1ВuA |
| Hysteresis | 6.5mV |
| Manufacturer | Microchip Technology |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Operating Temperature | -40В C ~ 85В C |
| Output Type | CMOS, Open-Drain, Rail-to-Rail, TTL |
| Package / Case | SC-74A, SOT-753 |
| Packaging | Cut Tape(CT) |
| Part Status | Active |
| Propagation Delay (Max) | 8Вus |
| Series | - |
| Supplier Device Package | SOT-23-5 |
| Type | General Purpose |
| Voltage - Input Offset (Max) | 7mV 5.5V |
| Voltage - Supply, Single/Dual (В±) | 1.6 V ~ 5.5 V |
| Brand | Microchip Technology |
| CMRR - Common Mode Rejection Ratio | 70 dB |
| Factory Pack Quantity | 3000 |
| Ib - Input Bias Current | 1 pA |
| Ios - Input Offset Current | 1 pA |
| Maximum Operating Temperature | +85 C |
| Minimum Operating Temperature | -40 C |
| Mounting Style | SMD/SMT |
| Number Of Channels | 1 Channel |
| Operating Supply Current | 1 uA |
| Operating Supply Voltage | 5.5 V |
| Output Current Per Channel | 2 mA |
| Product | Analog Comparators |
| Product Category | Analog Comparators |
| Product Type | Analog Comparators |
| PSRR - Power Supply Rejection Ratio | 80 dB |
| Reference Voltage | Yes |
| Response Time | 4 us |
| Shutdown | No Shutdown |
| Subcategory | Amplifier ICs |
| Supply Type | Single |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 1.6 V |
| Technology | CMOS |
| Vcm - Common Mode Voltage | Negative Rail-0.3 V to Positive Rail+0.3 V |
| Vos - Input Offset Voltage | 7 mV |
