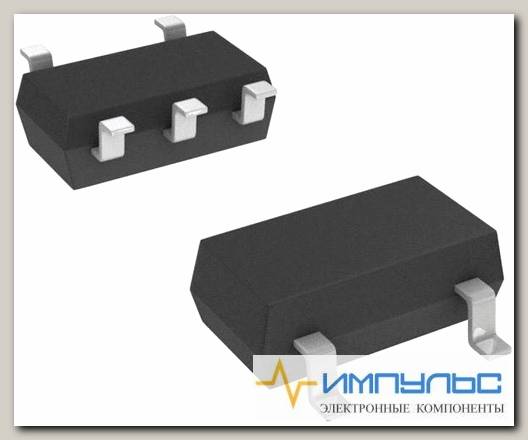

MCP6561T-E/OT /Код si-376186
- Артикул: si-376186
Микросхемы / Усилители и компараторы / КомпараторыКомпаратор двухтактный выход 1.8В
| Корпус | SOT-23-5 |
| Brand | Microchip Technology |
| CMRR - Common Mode Rejection Ratio | 66 dB |
| Comparator Type | General Purpose |
| Factory Pack Quantity | 3000 |
| Ib - Input Bias Current | 5 nA |
| Ios - Input Offset Current | 1 pA |
| Manufacturer | Microchip |
| Maximum Operating Temperature | +125 C |
| Minimum Operating Temperature | -40 C |
| Mounting Style | SMD/SMT |
| Number Of Channels | 1 Channel |
| Operating Supply Current | 130 uA |
| Operating Supply Voltage | 1.8 V to 5.5 V |
| Output Current Per Channel | 25 mA |
| Output Type | Push-Pull |
| Package / Case | SOT-23-5 |
| Packaging | Cut Tape or Reel |
| Product | Analog Comparators |
| Product Category | Analog Comparators |
| Product Type | Analog Comparators |
| Propagation Delay Time | 49 ns |
| PSRR - Power Supply Rejection Ratio | 70 dB |
| Subcategory | Amplifier ICs |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 1.8 V |
| Vcm - Common Mode Voltage | -0.3 V to 0.3 V |
| Vos - Input Offset Voltage | 10 mV |
| Common Mode Rejection Ratio | 66(dB) |
| Dual Supply Voltage (Max) | Not Required(V) |
| Dual Supply Voltage (Min) | Not Required(V) |
| Dual Supply Voltage (Typ) | Not Required(V) |
| Input Offset Voltage | 10(mV) |
| Mounting | Surface Mount |
| Number of Elements | 1 |
| Operating Temp Range | -40C to 125C |
| Operating Temperature Classification | Automotive |
| Package Type | SOT-23 |
| Pin Count | 5 |
| Power Supply Rejection Ratio | 70(dB) |
| Power Supply Requirement | Single |
| Rad Hardened | No |
| Rail to Rail | RAIL TO RAIL INPUT |
| Single Supply Voltage (Max) | 5.5(V) |
| Single Supply Voltage (Min) | 1.8(V) |
| Single Supply Voltage (Typ) | 3/5(V) |
| Strobe Capability | NO |
| Technology | CMOS |
| Вес, г | 0.05 |
