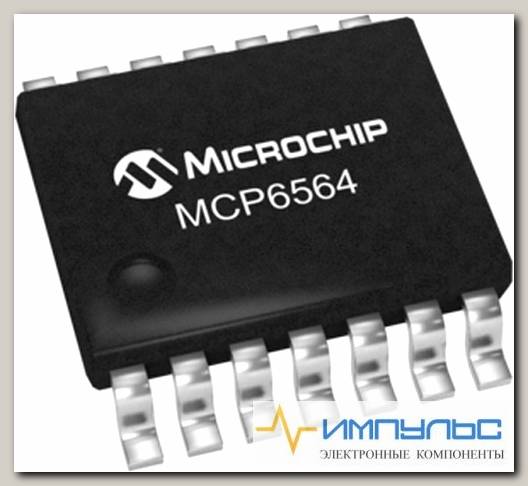

MCP6564-E/ST /Код si-380867

IC, COMPARATOR, QUAD, 1.8V, 14TSSOP; Comparator Type:Low Power; No. of Comparators:4 Comparators; Response Time:47ns; Supply Voltage Range:1.8V to 5.5V; Comparator Case Style:TSSOP; No. of Pins:14Pins; IC Output Type:CMOS, Push Pull, TTL; Operating Temperature Min:-40°C; Operating Temperature Max:125°C; Product Range:-; Automotive Qualification Standard:AEC-Q100; RoHS Phthalates Compliant:Yes; MSL:MSL 1 - Unlimited; SVHC:No SVHC (27-Jun-2018); Amplifier Case Style:TSSOP; No. of Comparators:4; No.Comparators:4; Operating Temperature Range:-40°C to +125°C; Output Compatibility:CMOS, TTL; Supply Current:100µA

Common Mode Rejection Ratio	66(dB)
Dual Supply Voltage (Max)	Not Required(V)
Dual Supply Voltage (Min)	Not Required(V)
Dual Supply Voltage (Typ)	Not Required(V)
Input Offset Voltage	10(mV)
Mounting	Surface Mount
Number of Elements	4
Operating Temp Range	-40C to 125C
Operating Temperature Classification	Automotive
Output Type	Push-Pull
Package Type	TSSOP
Packaging	Tape and Reel
Pin Count	14
Power Supply Rejection Ratio	70(dB)
Power Supply Requirement	Single
Rad Hardened	No
Rail to Rail	RAIL TO RAIL INPUT
Single Supply Voltage (Max)	5.5(V)
Single Supply Voltage (Min)	1.8(V)
Single Supply Voltage (Typ)	3/5(V)
Strobe Capability	NO
Technology	CMOS
Comparator Type	General Purpose
Maximum Operating Temperature	+125 °C
Minimum Operating Temperature	-40 °C
Mounting Type	Surface Mount
Number of Channels per Chip	4
Power Supply Type	Single
Typical CMRR	65dB
Typical PSRR	70dB
Typical Response Time	0.02µ,s
Typical Single Supply Voltage	1.8 to 5.5 V
Width	4.50mm
