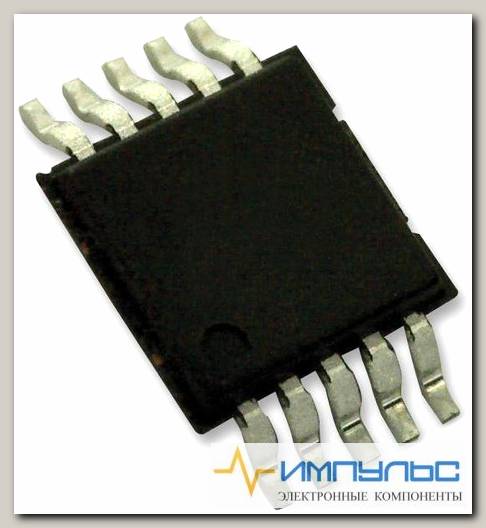

MCP6S93-E/UN /Код si-856283

AMP PROGRAMMABLE GAIN 2 CH, 6S91; No. of Channels:2Channels; No. of Amplifiers:1 Amplifier; Bandwidth:18MHz; Operating Temperature Min:-40°C; Operating Temperature Max:125°C; Supply Voltage Range:2.5V to 5.5V; Amplifier Case Style:MSOP; No. of Pins:10Pins; Product Range:-; Automotive Qualification Standard:-; MSL:MSL 1 - Unlimited; SVHC:No SVHC (15-Jan-2018); Amplifer Supply Voltage:2.5V to 5.5V; Amplifier Type:Programmable Gain; Base Number:6; Gain Bandwidth:18MHz; Gain dB Max:32dB; IC Generic Number:6S91; Input Offset Drift Max:1.8µV/°C; Input Offset Voltage Max:4mV; Logic Function Number:93; No. of Amplifiers:1Amplifiers; Operating Temperature Range:-40°C to +125°C; Programmable Gain Max:32; Rail To Rail I/O Type:Rail-Rail I/O; Slew Rate:22V/µs; Supply Voltage + Nom:5.5V; Supply Voltage Max:5.5V; Supply Voltage Min:2.5V

Dual Supply Voltage (Max)	Not Required(V)
Dual Supply Voltage (Min)	Not Required(V)
Dual Supply Voltage (Typ)	Not Required(V)
Input Bias Current	0.001(nA)
Input Offset Voltage	4(mV)
Input Resistance	10000000(MOhm)
Mounting	Surface Mount
Number of Elements	1
Number of Channels	1
Operating Temp Range	-40C to 125C
Operating Temperature Classification	Automotive
Package Type	MSOP
Packaging	Rail/Tube
Pin Count	10
Power Supply Rejection Ratio	70(dB)
Power Supply Requirement	Single
Rad Hardened	No
Single Supply Voltage (Max)	5.5(V)
Single Supply Voltage (Min)	2.5(V)
Single Supply Voltage (Typ)	3/5(V)
Voltage Gain dB	30.1(dB)
Диапазон Напряжения Питания	2.5В до 5.5В
Количество Выводов	10вывод(-ов)
Количество Каналов	2канал(-ов)
Количество Усилителей	1 Усилитель
Максимальная Рабочая Температура	125 C
Минимальная Рабочая Температура	-40 C
Полоса Пропускания	18МГц
Стиль Корпуса Усилителя	MSOP
Уровень Чувствительности к Влажности (MSL)	MSL 1-Безлимитный
