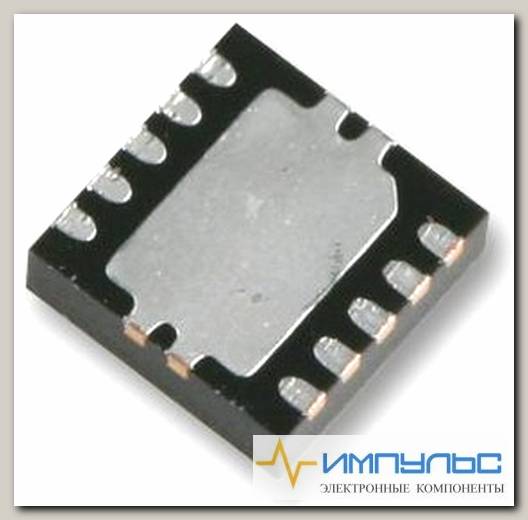

MCP73213-A6SI/MF, Зарядное устройство для 2-элементной литий-ионной, Li-Pol батареи, 4В вход, 8.4В/1.1A, DFN-10 /Код si-669880

Полупроводники - Микросхемы\Микросхемы Управления Питанием\Управление Питанием Батарей\Микросхемы Зарядных УстройствThe MCP73213-A6SI/MF is a dual cell highly integrated Li-ion battery charge Management Controller for use in space-limited and cost-sensitive applications. The MCP73213 can accept an absolute maximum of 18V input and provides a 13V overvoltage protection. The output current can be programmable to be between 130 and 1100mA. The MCP73213 is specified over the ambient temperature range of -40 to 85°C. The MCP73213 provides specific charge algorithms for dual-cell Li-ion/Li-polymer batteries to achieve optimal capacity and safety in the shortest charging time possible. The MCP73213 employs a constant current/constant voltage charge algorithm. • Integrated input overvoltage protection• Integrated pass transistor• Integrated current sense• Integrated reverse discharge protection• Constant current/constant voltage operation with thermal regulation• 4.15V Under-voltage lockout (UVLO)• 18V Absolute maximum input• 13V Overvoltage protection (OVP)• Preconditioning of deeply depleted cells 10% or disable• 32 minutes or Disable integrated precondition timer• Automatic end-of-charge control• Factory preset charge status output - on/off or flashing• Soft start

Входное Напряжение	4В
Количество Выводов	10вывод(-ов)
Количество Последовательных Ячеек	2
Максимальная Рабочая Температура	85 C
Максимальный Ток Зарядки	1.1А
Минимальная Рабочая Температура	-40 C
Напряжение Зарядки Батареи	8.4В
Стиль Корпуса ИС Батареи	DFN
Тип Батареи	Литий-ионная, Литий-полимерная
Уровень Чувствительности к Влажности (MSL)	MSL 1-Безлимитный
Battery Type	Li-Ion, Li-Polymer
Brand	Microchip Technology
Charge Safety Timers	No Charge Safety Timers
Factory Pack Quantity	120
Manufacturer	Microchip
Maximum Operating Temperature	+85 C
Minimum Operating Temperature	-40 C
Mounting Style	SMD/SMT
Operating Supply Current	700 uA
Operating Supply Voltage	4.2 V to 13 V
Output Voltage	8.4 V
Package / Case	DFN-10, 3x3
Packaging	Tube
Product Category	Battery Management
Product Type	Charge Management
RoHS	Details
Temperature Monitoring	No Temperature Monitoring
UVLO Start Threshold	4.15 V
UVLO Stop Threshold	4.05 V
Вес, г	0.1
