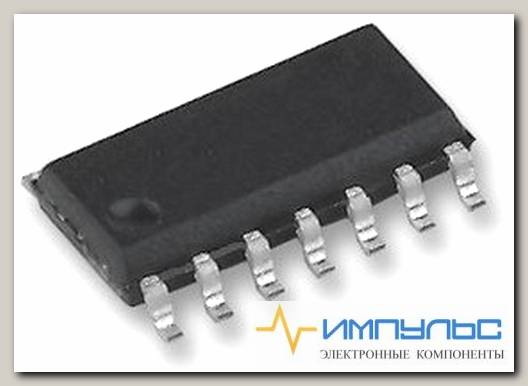

MIC5800YM, Latched Driver -40C to 85C 14-Pin SOIC N Tube /Код si-692386

Semiconductor - IC > Standard Logic > LatchesThe MIC5800/5801 latched drivers are high-voltage, high-current integrated circuits comprised of four or eight CMOS data latches, a bipolar Darlington transistor driver for each latch, and CMOS control circuitry for the common CLEAR, STROBE, and OUTPUT ENABLE functions.

Latch Mode	Transparent
Latching Element	D Type
Logic Family	CMOS
Maximum Operating Supply Voltage	15.3 V
Maximum Operating Temperature	+85 C
Minimum Operating Supply Voltage	-0.3 V
Minimum Operating Temperature	-40 C
Mounting Type	Through Hole
Number of Bits	4
Number of Channels per Chip	1
Number of Elements per Chip	15
Output Type	Open Collector
Package Type	SOIC
Pin Count	14
Polarity	Non-Inverting
Set/Reset	Yes
Width	3.89mm
Выходное Напряжение	50В
Выходной Ток	500мА
Максимальное Напряжение Питания	12В
Минимальное Напряжение Питания	5В
Стиль Корпуса Привода	SOIC
Уровень Чувствительности к Влажности (MSL)	MSL 3-168 часов
