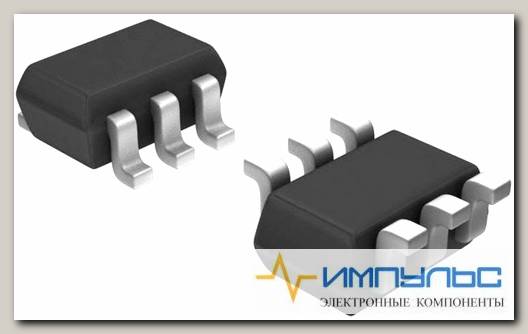

NC7SV157P6X /Код si-499690

IC, NC7SV, SMD; Logic Family / Base Number:NC7S157; Logic Type:Multiplexer; No. of Channels:1Channels; Line Configuration:2:1; Supply Voltage Min:900mV; Supply Voltage Max:3.6V; Logic Case Style:SC-70; No. of Pins:6Pins; Logic IC Family:NC7S; Logic IC Base Number:74157; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; Product Range:-; Automotive Qualification Standard:-; RoHS Phthalates Compliant:Yes; MSL:-; SVHC:No SVHC (27-Jun-2018); Base Number:7; Logic IC Base Number:7; Logic IC Function:Non Inverting Multiplexer; Operating Temperature Range:-40°C to +85°C; Output Current Max:24mA; Ratio:2:1; Supply Voltage Range:900mV to 3.6V; Termination Type:Surface Mount Device

Configuration	1x2
High Level Output Current	-24(mA)
Input Signal Type	Single-Ended
Logic Family	TinyLogic ULP
Logical Function	Mux
Low Level Output Current	24(mA)
Mounting	Surface Mount
Number of Elements	1
Number of Input Enables per Element	0
Number of Inputs	2
Number of Output Enables per Element	0
Number of Outputs	1
Number of Selection Inputs per Element	1
Operating Supply Voltage (Max)	3.6(V)
Operating Supply Voltage (Min)	0.9(V)
Operating Supply Voltage (Typ)	1.8/2.5/3.3(V)
Operating Temp Range	-40C to 85C
Operating Temperature Classification	Industrial
Output Signal Type	SINGLE-ENDED
Package Type	SC-70
Packaging	Tape and Reel
Parity Invert Input	NO
Pin Count	6
Polarity	Non-Inverting
Process Technology	CMOS
Quiescent Current (Max)	0.0009(mA)
Rad Hardened	No
Tolerant I/Os	3.6
Вес, г	0.03
