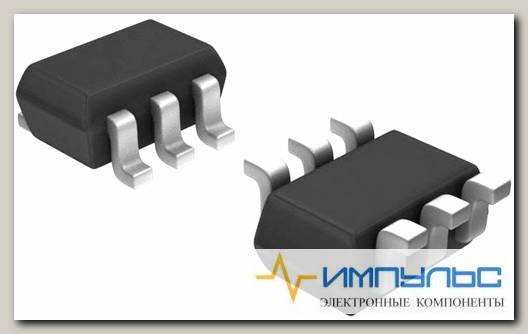

NC7SZ157P6X /Код si-500000

IC, NC7SZ, SMD; Logic Family / Base Number:NC7S157; Logic Type:Multiplexer; No. of Channels:1Channels; Line Configuration:2:1; Supply Voltage Min:1.65V; Supply Voltage Max:5.5V; Logic Case Style:SC-70; No. of Pins:6Pins; Logic IC Family:NC7S; Logic IC Base Number:74157; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; Product Range:-; Automotive Qualification Standard:-; RoHS Phthalates Compliant:Yes; MSL:MSL 1 - Unlimited; SVHC:No SVHC (27-Jun-2018); Base Number:7; Logic IC Base Number:7; Logic IC Function:Non Inverting Multiplexer; Operating Temperature Range:-40°C to +85°C; Output Current Max:32mA; Ratio:2:1; Supply Voltage Range:1.65V to 5.5V; Termination Type:Surface Mount Device

Brand	ON Semiconductor/Fairchild
Factory Pack Quantity	3000
Function	Multiplexer
Height	1 mm
High Level Output Current	-32 mA
Input Voltage	-0.5 V to+7 V
Length	2 mm
Logic Family	NC7
Logic Type	Multiplexer
Low Level Output Current	32 mA
Manufacturer	ON Semiconductor
Maximum Operating Temperature	+85 C
Minimum Operating Temperature	-40 C
Mounting Style	SMD/SMT
Number of Circuits	Single
Number of Input Lines	2 Input
Number of Output Lines	1 Output
Operating Supply Voltage	1.65 V to 5.5 V
Output Current	+/-50 mA
Output Voltage	-0.5 V to+7 V
Package / Case	SC-70-6
Packaging	Reel
Part # Aliases	NC7SZ157P6X_NL
Pd - Power Dissipation	180 mW
Product	Decoders, Encoders, Multiplexers Demultiplexers
Product Category	Encoders, Decoders, Multiplexers Demultiplexers
Propagation Delay Time	4.6 ns at 3.3 V, 3.7 ns at 5 V
RoHS	Details
Series	NC7SZ157
Supply Voltage - Max	5.5 V
Supply Voltage - Min	1.65 V
Technology	CMOS
Tradename	TinyLogic
Unit Weight	0.000988 oz
Width	1.25 mm
Mounting Type	Surface Mount
Package Type	SC-70
Pin Count	6
Вес, г	0.06
