NCD57000DWR2G, Isolated Gate Drivers GALVANIC ISOLATED HIGH CURRENT IGBT GATE DRIVER /Код si-707793

Semiconductors\Power Management ICs\Isolated Gate DriversGalvanically Isolated High Current Gate Driversonsemi Galvanically Isolated High Current Gate Drivers offer high transient and electromagnetic immunity. The NCx5700x is a high-current single-channel IGBT driver with internal galvanic isolation, designed for high system efficiency and reliability in high power applications. The drivers feature complementary inputs, open-drain FAULT, and Ready outputs, active Miller clamp, accurate UVLOs, DESAT protection, soft turn-off at DESAT, and separate high and low (OUTH and OUTL) driver outputs for system design convenience. The NCx5700x accommodates both 5V and 3.3V signals on the input side and a wide bias voltage range on the driver side, including negative voltage capability. They provide>5kV RMS (UL1577 rating) galvanic isolation and >1200V IORM (working voltage) capabilities. The NCx5700x series are available in the wide-body SOIC-16 package with a guaranteed 8mm creepage distance between input and output to fulfill reinforced safety insulation requirements.

Brand:	onsemi
Configuration:	Inverting, Non-Inverting
Factory Pack Quantity: Factory Pack Quantity:	1000
Fall Time:	15 ns
Manufacturer:	onsemi
Maximum Operating Temperature:	+125 C
Maximum Turn-Off Delay Time:	90 ns
Maximum Turn-On Delay Time:	90 ns
Minimum Operating Temperature:	-40 C
Mounting Style:	SMD/SMT
Number of Drivers:	1 Driver
Number of Outputs:	2 Output
Operating Supply Current:	4.8 mA
Output Current:	6 A
Output Voltage:	24 V

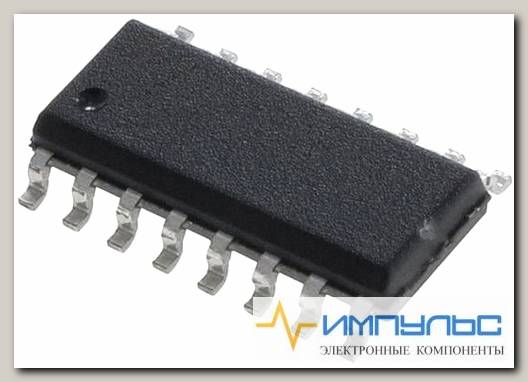

Package/Case:	SOIC-16
Packaging:	Reel, Cut Tape, MouseReel
Pd - Power Dissipation:	1400 mW
Product Category:	Isolated Gate Drivers
Product Type:	Isolated Gate Drivers
Product:	IGBT, MOSFET Gate Drivers
Propagation Delay - Max:	90 ns
Rise Time:	10 ns
Subcategory:	PMIC-Power Management ICs
Supply Voltage - Max:	5 V
Supply Voltage - Min:	3.3 V
Вес, г	0.53
