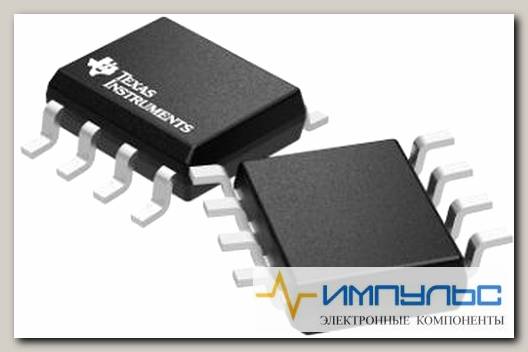

PCA9515AD, I2C Logic Repeater 2.5V/3.3V 8-Pin SOIC Tube /Код si-299771
- Артикул: si-299771
Semiconductor - IC > Drivers and Interfaces > Signal Buffer and RepeaterBuffer, ReDriver 1 Channel 400kHz 8-SOIC
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8542.39.00.01 |
| Type | Repeater |
| Maximum Clock Frequency (kHz) | 400 |
| Input Signal Type | I2C Logic |
| Typical Input Capacitance (pF) | 7 |
| Minimum Operating Supply Voltage (V) | 2.3 |
| Maximum Operating Supply Voltage (V) | 3.6 |
| Typical Operating Supply Voltage (V) | 3.3|2.5 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 85 |
| Standard Package Name | SOP |
| Packaging | Tube |
| Supplier Package | SOIC |
| Pin Count | 8 |
| Mounting | Surface Mount |
| Package Height | 1.5(Max) |
| Package Length | 5(Max) |
| Package Width | 4(Max) |
| PCB changed | 8 |
| Lead Shape | Gull-wing |
| Applications | IВІC |
| Base Product Number | PCA9515 ->, |
| Capacitance - Input | 7pF |
| Current - Supply | 500Вµ,A |
| Data Rate (Max) | 400kHz |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
| Input | 2-Wire Bus |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Operating Temperature | -40В°C ~ 85В°C |
| Output | 2-Wire Bus |
| Package | Tube |
| Package / Case | 8-SOIC (0.154, 3.90mm Width) |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Supplier Device Package | 8-SOIC |
| Voltage - Supply | 2.3V ~ 3.6V |
| корпус | SO-8 |
| Absolute Propagation Delay Time | 100ns |
| Bi-Directional | Yes |
| Bus Compatibility | I2C, SMBus |
| Logic Family | PCA9515A |
| Logic Function | Bus Repeater |
| Maximum Operating Supply Voltage | 3.6 V |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Supply Voltage | 2.3 V |
| Minimum Operating Temperature | -40 °C |
| Package Type | SOIC |
| Priced to Clear | Yes |
| Width | 5mm |
