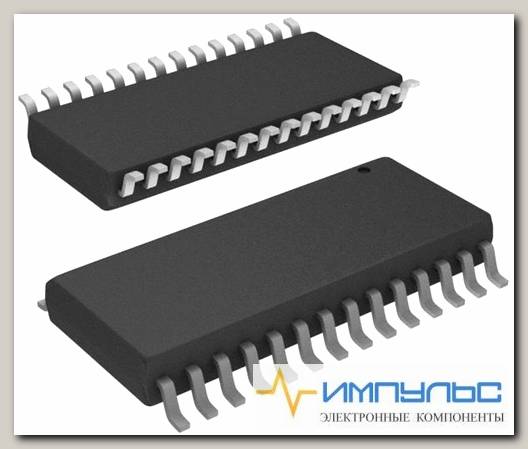

PCM4202DB /Код si-238484

24BIT ADC, 2CH AUDIO, SMD, SSOP28; Resolution (Bits):24bit; Sampling Rate:216kSPS; Input Channel Type:Single Ended; Data Interface:Serial; Supply Voltage Type:Single; Supply Voltage Min:4.75V; Supply Voltage Max:5.25V; ADC / DAC Case Style:SSOP; No. of Pins:28Pins; Operating Temperature Min:-10°C; Operating Temperature Max:70°C; Product Range:-; Automotive Qualification Standard:-; MSL:MSL 2 - 1 year; SVHC:No SVHC (15-Jan-2019); Base Number:4202; No. of Bits:24bit; No. of Channels:2Channels; Operating Temperature Range:-10°C to +70°C; Supply Current:55mA; Supply Voltage Range:4.75V to 5.25V; Supply Voltage Range - Analogue:4.75V to 5.25V; Supply Voltage Range - Digital:3V to 3.6V; Termination Type:Surface Mount Device

Architecture	Delta-Sigma
Differential Input	Yes
Digital Supply Support	YES
Dual Supply Voltage (Max)	Not Required(V)
Dual Supply Voltage (Min)	Not Required(V)
Dual Supply Voltage (Typ)	Not Required(V)
Full Scale Error	' ±4%FSR(TYP)
Input Polarity	Bipolar
Input Type	Voltage
Interface Type	Serial
Mounting	Surface Mount
Number of Elements	2
Number of Input Channels	2
Operating Temp Range	-10C to 70C
Operating Temperature Classification	Commercial
Package Type	SSOP
Packaging	Tape and Reel
Pin Count	28
Power Dissipation	408(W)
Power Supply Requirement	Analog and Digital
Rad Hardened	No
Rated Input Volt	6VP-P
Reference Voltage	INTERNAL(V)
Resolution	24Bit
Sample and Hold	NO
Sample Rate	216KSPS(KSPS)
Single Supply Voltage (Max)	5.25(V)
Single Supply Voltage (Min)	4.75(V)
Single Supply Voltage (Typ)	5(V)
Single-Ended Input	YES
Вес, г	0.24
