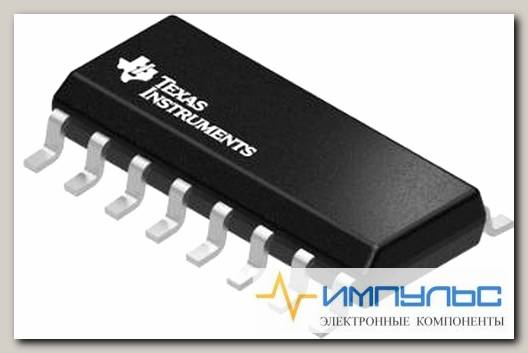

SN74AHC138D /Код si-502418

IC, DECODER/DEMUX, SMD; Logic Family / Base Number:74AHC138; Logic Type:Decoder / Demultiplexer; No. of Outputs:8Outputs; Logic Case Style:SOIC; No. of Pins:16Pins; Supply Voltage Min:2V; Supply Voltage Max:5.5V; Logic IC Family:74AHC; Logic IC Base Number:74138; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; Product Range:-; Automotive Qualification Standard:-; MSL:MSL 1 - Unlimited; SVHC:No SVHC (15-Jan-2019); Applications:Data Transmission Systems, Memory Decoders; Base Number:74138; IC Applications:Data Transmission Systems, Memory Decoders; Logic Function Number:74138; Logic IC Base Number:74138; Logic IC Function:3-to-8 Line Decoder/Demultiplexer; Operating Temperature Range:-40°C to +85°C; Output Current Max:8mA; Supply Voltage Range:2V to 5.5V; Termination Type:Surface Mount Device

Demultiplexing Capability	1-OF-8
High Level Output Current	-8(mA)
Logic Family	AHC
Logical Function	Decoder/Demux
Low Level Output Current	8(mA)
Maximum Propagation Delay Time @ Maximum CL	15.8@3.3V/10.1@5V
Mounting	Surface Mount
Number of Elements	1
Number of Input Enables per Element	3
Number of Inputs	3
Number of Output Enables per Element	0
Number of Outputs	8
Operating Supply Voltage (Max)	5.5(V)
Operating Supply Voltage (Min)	2(V)
Operating Supply Voltage (Typ)	2.5/3.3/5(V)
Operating Temp Range	-40C to 85C
Operating Temperature Classification	Industrial
Output Type	Standard
Package Type	SOIC
Packaging	Tape and Reel
Pin Count	16
Polarity	Inverting
Propagation Delay Time	18.5(ns)
Quiescent Current	4(uA)
Rad Hardened	No
Technology	CMOS
EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Package Length	10(Max)
Package Width	4(Max)
Lead Shape	Gull-wing
Package Height	1.5(Max)
PCB changed	16
Logic Function	Decoder/Demultiplexer
Number of Elements per Chip	1
Number of Element Inputs	3
Number of Element Outputs	8
Maximum Propagation Delay Time @ Maximum CL (ns)	10.1@5V|15.8@3.3V
Absolute Propagation Delay Time (ns)	18.5
Process Technology	CMOS
Maximum Low Level Output Current (mA)	8
Maximum High Level Output Current (mA)	-8
Minimum Operating Supply Voltage (V)	2
Typical Operating Supply Voltage (V)	2.5|5|3.3
Maximum Operating Supply Voltage (V)	5.5
Maximum Quiescent Current (mA)	0.004
Propagation Delay Test Condition (pF)	50
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
Supplier Package	SOIC
Standard Package Name	SOP
Pd - рассеивание мощности	600 mW
Вид монтажа	SMD/SMT
Время задержки распространения	13 ns
Высота	1.58 mm
Выходной ток высокого уровня	8 mA
Выходной ток низкого уровня	8 mA
Диапазон рабочих температур	40 C to + 85 C
Длина	9.9 mm
Категория продукта	Кодеры, декодеры, мультиплексоры и демультиплексор
Количество входных линий	3 Input
Количество выходных линий	8 Output
Количество контуров	Dual
Количество цифровых разрядов	8 bit
Максимальная рабочая температура	+ 85 C
Максимальная тактовая частота	110 MHz
Минимальная рабочая температура	40 C
Напряжение питания - макс.	0.004 mA, 5.5 V
Напряжение питания - мин.	2 V
Подкатегория	Logic ICs
Продукт	Decoders / Demultiplexers
Рабочее напряжение питания	2 V to 5.5 V
Размер фабричной упаковки	40
Семейство логических элементов	AHC
Серия	SN74AHC138
Технология	CMOS
Тип логики	Decoders/Demultiplexers
Тип продукта	Encoders, Decoders, Multiplexers Demultiplexers
Торговая марка	Texas Instruments
Упаковка	Tube
Упаковка / блок	SOP-16
Функция	Decoder and Demux
Ширина	3.91 mm
Base Product Number	74AHC138 ->,
Circuit	1 x 3:8
Current - Output High, Low	8mA, 8mA
ECCN	EAR99
HTSUS	8542.39.0001
Independent Circuits	1
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mounting Type	Surface Mount
Operating Temperature	-40В°C ~ 85В°C
Package	Tube
Package / Case	16-SOIC (0.154, 3.90mm Width)
REACH Status	REACH Unaffected
RoHS Status	ROHS3 Compliant
Series	74AHC ->,
Supplier Device Package	16-SOIC
Type	Decoder/Demultiplexer
Voltage - Supply	2V ~ 5.5V
Voltage Supply Source	Single Supply
Вес, г	0.54
