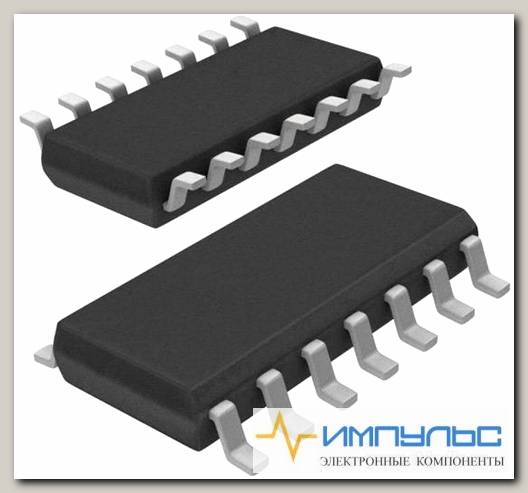

SN74AHCT00D /Код si-481741

IC, QUAD 2-INPUT NAND; Logic Family / Base Number:74AHCT00; Logic Type:NAND; Output Current:8mA; No. of Inputs:2; Supply Voltage Min:4.5V; Supply Voltage Max:5.5V; Logic Case Style:SOIC; No. of Pins:14Pins; Logic IC Family:74AHCT; Logic IC Base Number:7400; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; Product Range:-; Automotive Qualification Standard:-; MSL:MSL 1 - Unlimited; SVHC:No SVHC (15-Jan-2019); Logic Function Number:7400; Logic IC Base Number:7400; Logic IC Function:Quad 2-Input NAND Gate; Operating Temperature Range:-40°C to +85°C; Supply Voltage Range:4.5V to 5.5V; Termination Type:Surface Mount Device

Brand	Texas Instruments
Factory Pack Quantity	50
Function	NAND
Height	1.58 mm
High Level Output Current	-8 mA
Input Type	TTL
Length	8.65 mm
Logic Family	AHCT
Logic Function	NAND
Logic Type	2-Input NAND
Low Level Output Current	8 mA
Manufacturer	Texas Instruments
Maximum Operating Temperature	+85 C
Minimum Operating Temperature	-40 C
Mounting Style	SMD/SMT
Number of Bits	4 bit
Number of Gates	4 Gate
Number of Input Lines	2 Input
Number of Output Lines	1 Output
Operating Supply Current	20 uA
Operating Supply Voltage	5 V
Operating Temperature Range	-40 C to+85 C
Output Type	CMOS
Package / Case	SOIC-14
Packaging	Tube
Product	Single-Function Gate
Product Category	Logic Gates
Propagation Delay Time	9 ns
RoHS	Details
Series	SN74AHCT00
Supply Voltage - Max	5.5 V
Supply Voltage - Min	4.5 V
Unit Weight	0.004564 oz
Width	3.91 mm
Вес, г	0.33
