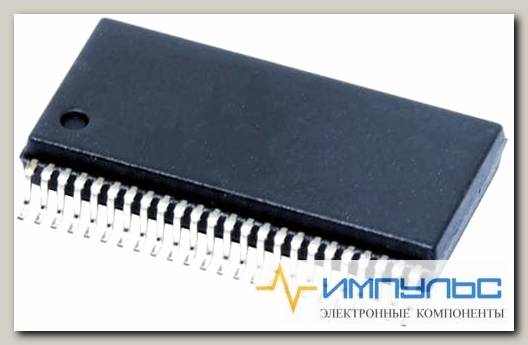

SN74ALVC164245DL /Код si-530473

TRANSCEIVER 3-STATE, SMD, SOIC48; Logic Family / Base Number:74ALVC16245; Logic Device Type:Transceiver, Non Inverting; Logic Case Style:SSOP; No. of Pins:48Pins; Supply Voltage Min:2.3V; Supply Voltage Max:3.6V; Logic IC Family:74ALVC; Logic IC Base Number:7416245; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; Product Range:-; Automotive Qualification Standard:-; MSL:MSL 1 - Unlimited; SVHC:No SVHC (15-Jan-2019); Base Number:74; Logic Function Number:74164245; Logic IC Base Number:74164245; Logic IC Function:Level Shifting Transceiver (3-State); No. of Transceivers:16; Operating Temperature Range:-40°C to +85°C; Supply Voltage:7V; Supply Voltage Range:2.3V to 3.6V, 3V to 5.5V; Termination Type:Surface Mount Device

Abs. Propagation Delay Time	12.3(ns)
Additional Features	W/Volt Translation
High Level Output Current	-24(mA)
Input Logic Level	LVTTL
Logic Family	ALVC
Low Level Output Current	24(mA)
Maximum Propagation Delay Time @ Maximum CL	5.8@3.3V@5V
Mounting	Surface Mount
Number of Elements	2
Number of Channels	16
Operating Supply Voltage (Max)	3.6/5.5(V)
Operating Supply Voltage (Min)	2.3/3(V)
Operating Supply Voltage (Typ)	2.5/3.3/2.5/5/3.3/5 V
Operating Temp Range	-40C to 85C
Operating Temperature (Max)	85C
Operating Temperature (Min)	-40C
Operating Temperature Classification	Industrial
Output Logic Level	LVTTL
Output Type	3-State
Package Type	SSOP
Packaging	Rail/Tube
Pin Count	48
Polarity	Non-Inverting
Propagation Delay Time	12.3 ns
Quiescent Current	40(uA)
Rad Hardened	No
Technology	CMOS
Вид монтажа	SMD/SMT
Время задержки распространения	2.4 ns
Выходной ток высокого уровня	24 mA
Выходной ток низкого уровня	24 mA
Диапазон данных	300 Mb/s
Диапазон рабочих температур	40 C to + 85 C
Категория продукта	Трансляция - уровни напряжения
Максимальная рабочая температура	+ 85 C
Минимальная рабочая температура	40 C
Напряжение питания - макс.	3.6 V, 5.5 V
Напряжение питания - мин.	2.3 V, 3 V
Особенности	Output enable
Подкатегория	Logic ICs
Размер фабричной упаковки	25
Семейство логических элементов	74ALV
Серия	SN74ALVC164245
Тип	Level-Shifting Transceiver
Тип выхода	3-State
Тип логики	CMOS
Тип продукта	Translation - Voltage Levels
Торговая марка	Texas Instruments
Упаковка	Tube
Упаковка / блок	SSOP-48
Base Product Number	74ALVC164245 ->,
Channel Type	Bidirectional
Channels per Circuit	8
ECCN	EAR99
HTSUS	8542.39.0001
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mounting Type	Surface Mount
Number of Circuits	2
Operating Temperature	-40В°C ~ 85В°C (TA)
Package	Tube
Package / Case	48-BSSOP (0.295, 7.50mm Width)
REACH Status	REACH Unaffected
RoHS Status	ROHS3 Compliant
Series	74ALVC ->,
Supplier Device Package	48-SSOP
Translator Type	Voltage Level
Voltage - VCCA	2.3V ~ 3.6V
Voltage - VCCB	3V ~ 5.5V
Вес, г	1.17
