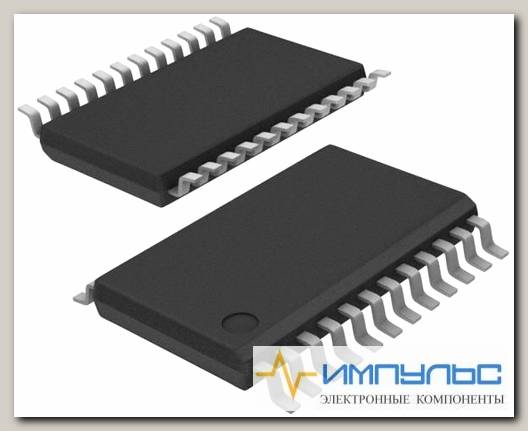

SN74CBTD3861PW /Код si-690433

ИС переключателя шины передачи данныхBUS SWITCH, FET, SMD, TSSOP24, 7V; No. of Inputs:10; Output Current:64mA; Propagation Delay:350µs; No. of Pins:24Pins; Logic Case Style:TSSOP; Supply Voltage Min:4.5V; Supply Voltage Max:5.5V; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; Logic Type:FET Bus Switch with Level Shifting; Product Range:-; Automotive Qualification Standard:-; MSL:MSL 1 - Unlimited; SVHC:No SVHC (15-Jan-2019); Base Number:74; Logic Function Number:743861; Logic IC Base Number:7438614; Logic IC Function:FET Bus Switch; On Resistance Rds(on):5ohm; On State Resistance Max:50ohm; Operating Temperature Range:-40°C to +85°C; Supply Voltage:7V; Supply Voltage Range:4.5V to 5.5V; Termination Type:Surface Mount Device; Turn Off Time:6ns; Turn On Time:10ns

Brand	Texas Instruments
Factory Pack Quantity	2000
Height	1.15 mm
Length	7.8 mm
Logic Type	CMOS
Manufacturer	Texas Instruments
Maximum Operating Temperature	+85 C
Minimum Operating Temperature	-40 C
Mounting Style	SMD/SMT
Number of Bits	10 bit
On Resistance - Max	7 Ohms
Operating Supply Voltage	5 V
Organization	10x1
Package / Case	TSSOP-24
Packaging	Reel
Product Category	Digital Bus Switch ICs
Propagation Delay - Max	350 ps
RoHS	Details
Series	SN74CBTD3861
Supply Current - Max	3 uA
Supply Voltage - Max	5.5 V
Supply Voltage - Min	4.5 V
Unit Weight	0.003157 oz
Width	4.4 mm
Вес, г	0.22
