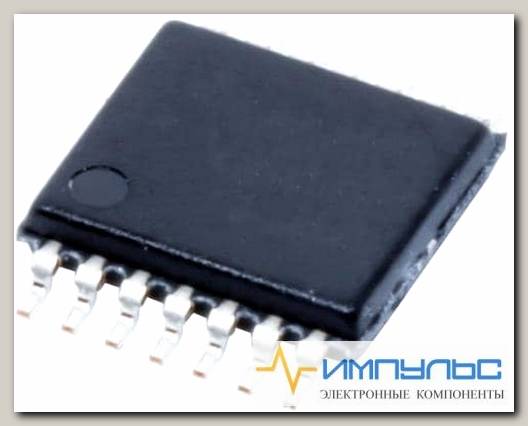

SN74HC164PW /Код si-544516

SHIFT REGISTER, SMD, TSSOP14, 7V; Logic Family / Base Number:74HC164; Shift Register Function:Serial to Parallel; No. of Elements:1 Element; No. of Bits Per Element:8bit; Logic Case Style:TSSOP; No. of Pins:14Pins; Supply Voltage Min:2V; Supply Voltage Max:6V; IC Output Type:Standard; Logic IC Family:74HC; Logic IC Base Number:74164; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; Product Range:-; Automotive Qualification Standard:-; MSL:MSL 1 - Unlimited; SVHC:No SVHC (15-Jan-2019); Base Number:74; Frequency:28MHz; Input Current Max:1µA; Logic Function Number:74164; Logic IC Base Number:741644; Logic Type:Shift Register; No. of Elements:1Elements; Operating Temperature Range:-40°C to +85°C; Supply Voltage:7V; Supply Voltage Range:2V to 6V; Termination Type:Surface Mount Device

Direction Type	Uni-Directional
Logic Family	HC
Logical Function	Shift Register
Mode Of Operation	SERIAL TO PARALLEL
Mounting	Surface Mount
Number of Elements	1
Number of Bits	8
Number of Count Input Enables	0
Number of Inputs	2
Number of Outputs	8
Number of Selection Inputs per Element	0
Operating Supply Voltage (Max)	6(V)
Operating Supply Voltage (Min)	2(V)
Operating Supply Voltage (Typ)	5(V)
Operating Temp Range	-40C to 125C
Operating Temperature Classification	Automotive
Output Type	Standard
Package Type	TSSOP
Packaging	Tape and Reel
Parallel Enable Input	NO
Pin Count	14
Propagation Delay Time	255(ns)
Rad Hardened	No
Reset Type	ASYNCHRONOUS
Technology	CMOS
Terminal Count Output	NO
Triggering Type	POSITIVE-EDGE
Type	Not Required
Вид монтажа	SMD/SMT
Время задержки распространения	175 ns, 35 ns, 30 ns
Диапазон рабочих температур	40 C to + 125 C
Категория продукта	Регистры сдвига счетчика
Количество входных линий	2
Количество выходных линий	8
Количество контуров	1
Количество цифровых разрядов	8 bit
Максимальная рабочая температура	+ 125 C
Минимальная рабочая температура	40 C
Напряжение питания - макс.	6 V
Подкатегория	Logic ICs
Последовательность счёта	Serial to Parallel
Рабочее напряжение питания	2 V to 6 V
Размер фабричной упаковки	90
Семейство логических элементов	74HC
Серия	SN74HC164
Тип логики	CMOS
Тип продукта	Counter Shift Registers
Торговая марка	Texas Instruments
Упаковка	Tube
Упаковка / блок	TSSOP-14
Функция	Shift Register
Ширина	4.4 mm
Base Product Number	74HC164 ->,
ECCN	EAR99
Function	Serial to Parallel
HTSUS	8542.39.0001
Logic Type	Shift Register
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mounting Type	Surface Mount
Number of Bits per Element	8
Number of Elements	1
Operating Temperature	-40В°C ~ 125В°C
Package	Tube
Package / Case	14-TSSOP (0.173, 4.40mm Width)
REACH Status	REACH Unaffected
RoHS Status	ROHS3 Compliant
Series	74HC ->,
Supplier Device Package	14-TSSOP
Voltage - Supply	2V ~ 6V
Logic Function	Shift Register
Maximum Operating Supply Voltage	6 V
Maximum Operating Temperature	85 °C
Minimum Operating Supply Voltage	2 V
Minimum Operating Temperature	-40 °C
Number of Stages	8
Operation Mode	Serial to Parallel
Вес, г	0.33
