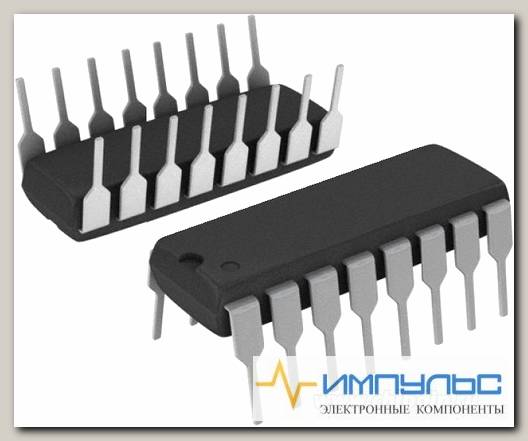

SN74LS123N /Код si-491754
- Артикул: si-491754
Integrated Circuits (ICs)\Logic - MultivibratorsMonostable Multivibrator 28ns 16-PDIP
| Base Product Number | 74LS123 ->, |
| Current - Output High, Low | 400Вµ,A, 8mA |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
| Independent Circuits | 2 |
| Logic Type | Monostable |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mounting Type | Through Hole |
| Operating Temperature | 0В°C ~ 70В°C |
| Package | Tube |
| Package / Case | 16-DIP (0.300, 7.62mm) |
| Propagation Delay | 28ns |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Schmitt Trigger Input | No |
| Series | 74LS ->, |
| Supplier Device Package | 16-PDIP |
| Voltage - Supply | 4.75V ~ 5.25V |
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8542.39.00.01 |
| Logic Family | LS |
| Logic Function | Monostable Multivibrator |
| Number of Elements per Chip | 2 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 56@5V |
| Absolute Propagation Delay Time (ns) | 56 |
| Process Technology | Bipolar |
| Maximum High Level Output Current (mA) | -0.4 |
| Maximum Low Level Output Current (mA) | 8 |
| Minimum Operating Supply Voltage (V) | 4.75 |
| Typical Operating Supply Voltage (V) | 5 |
| Maximum Operating Supply Voltage (V) | 5.25 |
| Maximum Quiescent Current (mA) | 12(Typ) |
| Minimum Operating Temperature (°C) | 0 |
| Maximum Operating Temperature (°C) | 70 |
| Packaging | Tube |
| Standard Package Name | DIP |
| Pin Count | 16 |
| Supplier Package | PDIP |
| Mounting | Through Hole |
| Package Height | 5.08(Max) - 0.51(Min) |
| Package Length | 19.69(Max) |
| Package Width | 6.6(Max) |
| PCB changed | 16 |
| Lead Shape | Through Hole |
| Brand | Texas Instruments |
| Elements per Chip | 2 |
| Factory Pack Quantity | 25 |
| High Level Output Current | -0.4 mA |
| Low Level Output Current | 8 mA |
| Manufacturer | Texas Instruments |
| Maximum Operating Temperature | +70 C |
| Minimum Operating Temperature | 0 C |
| Mounting Style | Through Hole |
| Operating Supply Voltage | 5 V |
| Product Category | Monostable Multivibrator |
| Propagation Delay Time | 56 ns |
| RoHS | Details |
| Supply Voltage - Max | 5.25 V |
| Supply Voltage - Min | 4.75 V |
| Unit Weight | 0.03357 oz |
