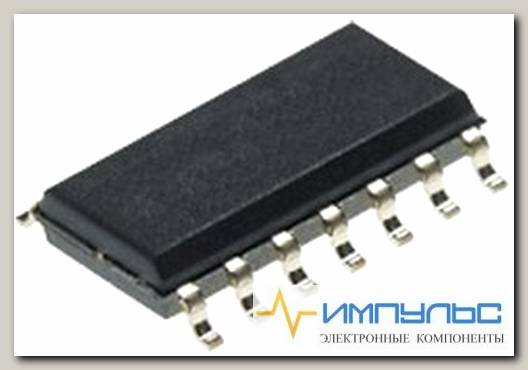

SN74LVC00AD, NAND Gate 4-Element 2-IN CMOS 14-Pin SOIC /Код si-266167
- Артикул: si-266167
логика - стандартнаяNAND Gate IC 4 Channel 14-SOIC
| Base Product Number | 74LVC00 ->, |
| Current - Output High, Low | 24mA, 24mA |
| Current - Quiescent (Max) | 1Вµ,A |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
| Logic Level - High | 1.7V ~ 2V |
| Logic Level - Low | 0.7V ~ 0.8V |
| Logic Type | NAND Gate |
| Max Propagation Delay @ V, Max CL | 4.1ns @ 3.3V, 50pF |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mounting Type | Surface Mount |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Operating Temperature | -40В°C ~ 125В°C |
| Package | Tube |
| Package / Case | 14-SOIC (0.154, 3.90mm Width) |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Series | 74LVC ->, |
| Supplier Device Package | 14-SOIC |
| Voltage - Supply | 1.65V ~ 3.6V |
| Brand | Texas Instruments |
| Factory Pack Quantity | 2500 |
| Function | NAND |
| Height | 1.58 mm |
| High Level Output Current | -24 mA |
| Input Type | TTL |
| Length | 8.65 mm |
| Logic Family | LVC |
| Logic Function | NAND |
| Low Level Output Current | 24 mA |
| Manufacturer | Texas Instruments |
| Maximum Operating Temperature | +125 C |
| Minimum Operating Temperature | -40 C |
| Mounting Style | SMD/SMT |
| Number of Gates | 4 Gate |
| Number of Input Lines | 2 Input |
| Number of Output Lines | 1 Output |
| Operating Supply Current | 10 uA |
| Operating Supply Voltage | 3.3 V |
| Operating Temperature Range | -40 C to+125 C |
| Output Type | TTL |
| Packaging | Reel |
| Product | Single-Function Gate |
| Product Category | Logic Gates |
| Propagation Delay Time | 4.3 ns |
| RoHS | Details |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 2 V |
| Unit Weight | 0.004318 oz |
| Width | 3.91 mm |
