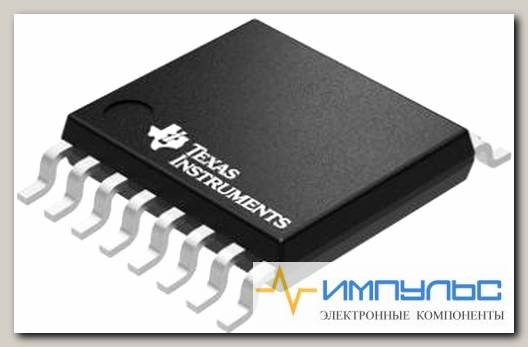

SN74LVC257APWR /Код si-502480
- Артикул: si-502480
Semiconductors\Logic ICs\Logic GatesMultiplexer 4 x 2:1 16-TSSOP
| Logic Type | Multiplexers |
| Operating Supply Voltage | 1.65V ~ 3.6V |
| Series | 74LVC |
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8542.39.00.01 |
| Logic Family | LVC |
| Logic Function | Multiplexer |
| Configuration | 4 x 2:1 |
| Number of Elements per Chip | 1 |
| Number of Inputs per Chip | 8 |
| Number of Input Enables per Element | 0 |
| Number of Selection Inputs per Element | 1 |
| Number of Outputs per Chip | 4 |
| Number of Output Enables per Element | 1 |
| Polarity | Non-Inverting |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 5.4@2.7V|4.6@3.3V |
| Absolute Propagation Delay Time (ns) | 15.6 |
| Process Technology | CMOS |
| Input Signal Type | Single-Ended |
| Parity Invert Input | No |
| Output Signal Type | Single-Ended |
| Output Type | 3-State |
| Maximum Low Level Output Current (mA) | 24 |
| Maximum High Level Output Current (mA) | -24 |
| Minimum Operating Supply Voltage (V) | 1.65 |
| Typical Operating Supply Voltage (V) | 3.3|2.5|1.8 |
| Maximum Operating Supply Voltage (V) | 3.6 |
| Tolerant I/Os (V) | 5 |
| Maximum Quiescent Current (uA) | 10 |
| Propagation Delay Test Condition (pF) | 50 |
| Power Supply Type | Single |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 85 |
| Packaging | Tape and Reel |
| Standard Package Name | SOP |
| Pin Count | 16 |
| Supplier Package | TSSOP |
| Mounting | Surface Mount |
| Package Height | 1.05(Max) |
| Package Length | 5.1(Max) |
| Package Width | 4.5(Max) |
| PCB changed | 16 |
| Lead Shape | Gull-wing |
| Base Product Number | 74LVC257 ->, |
| Circuit | 4 x 2:1 |
| Current - Output High, Low | 24mA, 24mA |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
| Independent Circuits | 1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40В°C ~ 85В°C |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-ReelВ®, |
| Package / Case | 16-TSSOP (0.173, 4.40mm Width) |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Supplier Device Package | 16-TSSOP |
| Type | Multiplexer |
| Voltage - Supply | 1.65V ~ 3.6V |
| Voltage Supply Source | Single Supply |
