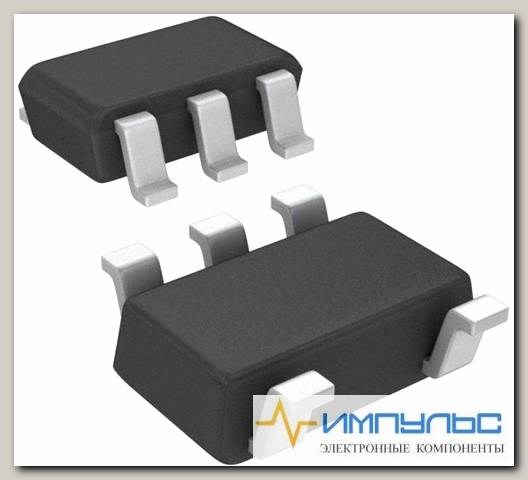

STM6822SWY6F /Код si-877487

SUPERVISOR WD + RESET 2.93V, SMD; Threshold Voltage:2.93V; No. of Supervisors / Monitors:1Monitors; Supply Voltage Min:1.2V; Supply Voltage Max:5.5V; Reset Type:Active-Low; Digital IC Case:SOT-23; No. of Pins:5Pins; Delay Time:200ms; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; Product Range:-; Automotive Qualification Standard:-; MSL:-; SVHC:No SVHC (17-Dec-2015); Base Number:6822; Operating Temperature Range:-40°C to +85°C; Output Current Max:20mA; Supply Current:4µA; Supply Voltage Range:1.2V to 5.5V; Termination Type:Surface Mount Device

Battery Backup Switching	No Backup
Brand	STMicroelectronics
Chip Enable Signals	No Chip Enable
Factory Pack Quantity	3000
Height	1.15 mm
Length	3 mm(Max)
Manual Reset	Manual Reset
Manufacturer	STMicroelectronics
Maximum Operating Temperature	+85 C
Minimum Operating Temperature	-40 C
Mounting Style	SMD/SMT
Number of Inputs Monitored	1 Input
Operating Supply Current	12 uA
Output Type	Active Low, Open Drain
Overvoltage Threshold	2.96 V
Package / Case	SOT-23-5
Packaging	Reel
Pd - Power Dissipation	320 mW
Power Fail Detection	No
Product Category	Supervisory Circuits
Reset Delay Time	280 ms
RoHS	Details
Series	STM6822
Supply Voltage - Max	5.5 V
Supply Voltage - Min	1 V
Threshold Voltage	2.5 V, 3 V, 3.3 V, 5 V
Type	Voltage Supervisory
Undervoltage Threshold	2.89 V
Watchdog Timers	Watchdog
Width	1.6 mm
EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Number of Supervisors	1
Maximum Reset Active Time (ms)	280
Output Driver	Active Low/Open Drain
Minimum Reset Threshold Voltage (V)	2.89
Typical Reset Threshold Voltage (V)	2.93
Maximum Reset Threshold Voltage (V)	2.96
Monitored Voltage (V)	3|5|3.3|2.5
Minimum Operating Supply Voltage (V)	1
Maximum Operating Supply Voltage (V)	5.5
Maximum Supply Current (uA)	12
Maximum Power Dissipation (mW)	320
Watchdog Timer	Yes
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
Supplier Temperature Grade	Industrial
Standard Package Name	SOT-23
Pin Count	5
Supplier Package	SOT-23
Mounting	Surface Mount
Package Height	1.3(Max)
Package Length	3(Max)
Package Width	1.75(Max)
PCB changed	5
Lead Shape	Gull-wing
Battery Backup Switching:	No Backup
Brand:	STMicroelectronics
Chip Enable Signals:	No Chip Enable
Factory Pack Quantity: Factory Pack Quantity:	3000
Manual Reset:	Manual Reset
Manufacturer:	STMicroelectronics
Maximum Operating Temperature:	+85 C
Minimum Operating Temperature:	-40 C
Mounting Style:	SMD/SMT
Number of Inputs Monitored:	1 Input
Operating Supply Current:	12 uA
Output Type:	Active Low, Open Drain
Overvoltage Threshold:	2.96 V
Package/Case:	SOT-23-5
Packaging:	Reel, Cut Tape, MouseReel
Pd - Power Dissipation:	320 mW
Power Fail Detection:	No
Product Category:	Supervisory Circuits
Product Type:	Supervisory Circuits
Reset Delay Time:	200 ms
Series:	STM6822
Subcategory:	PMIC-Power Management ICs
Supply Voltage - Max:	5.5 V
Supply Voltage - Min:	1 V
Threshold Voltage:	2.93 V
Type:	Voltage Supervisory
Undervoltage Threshold:	2.89 V
Watchdog Timers:	Watchdog
Время Задержки	200мс
Количество Выводов	5вывод(-ов)
Количество Устройств Мониторинга	1монитор(-ов)
Корпус Цифровой ИС	SOT-23
Максимальная Рабочая Температура	85 C
Максимальное Напряжение Питания	5.5В
Минимальная Рабочая Температура	-40 C
Минимальное Напряжение Питания	1.2В
Пороговое Напряжение	2.93В
Тип Сброса	Низкий Активный Уровень Сигнала
