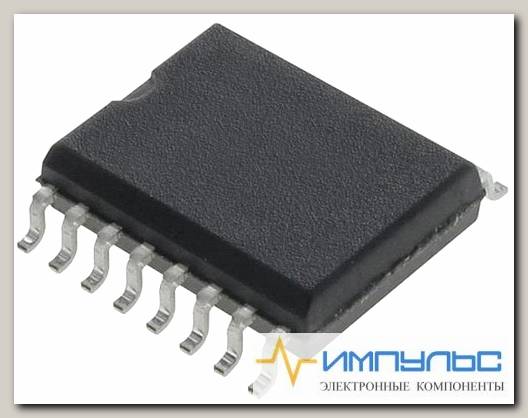

TC4468COE, Gate Drivers 1.2A Quad AND I/P /Код si-706925

Semiconductors\Power Management ICs\Gate Drivers Драйверы полевых МОП-транзисторов TC4467 / 4468/4469 Microchip TC4467, TC4468 и TC4469 представляют собой ряд драйверов полевых МОП-транзисторов нижнего уровня с четырьмя выходами. Эти драйверы MOSFET имеют два входа для каждого выхода, сконфигурированные как логические вентили.

Brand:	Microchip Technology/Atmel
Configuration:	Non-Inverting
Factory Pack Quantity: Factory Pack Quantity:	47
Fall Time:	25 ns
Manufacturer:	Microchip
Maximum Operating Temperature:	+70 C
Minimum Operating Temperature:	0 C
Moisture Sensitive:	Yes
Mounting Style:	SMD/SMT
Number of Drivers:	4 Driver
Number of Outputs:	4 Output
Operating Supply Current:	4 mA
Operating Supply Voltage:	4.5 V to 18 V
Output Current:	1.2 A
Package/Case:	SOIC-16
Packaging:	Tube
Pd - Power Dissipation:	760 mW
Product Category:	Gate Drivers
Product Type:	Gate Drivers
Product:	MOSFET Gate Drivers
Rise Time:	25 ns
Series:	TC4468
Subcategory:	PMIC-Power Management ICs
Supply Voltage - Max:	18 V
Supply Voltage - Min:	4.5 V
Technology:	Si
Type:	Low-Side
Maximum Operating Temperature	+70 °C
Topology	Low Side
Length	10.49mm
Number of Outputs	4
Minimum Operating Supply Voltage	4.5 V
Brand	Microchip
Polarity	Non-Inverting
Input Logic Compatibility	CMOS
Package Type	SOIC
Mounting Type	Surface Mount
Minimum Operating Temperature	0 °C
Width	7.59mm
Height	2.39mm
Maximum Operating Supply Voltage	18 V
Pin Count	16
Dimensions	10.49 x 7.59 x 2.39mm
Bridge Type	Half Bridge
Peak Output Current	1.2A
Number of Drivers	4
Automotive	No
Driver Configuration	Non-Inverting
Driver Type	Low Side
ECCN (US)	EAR99
EU RoHS	Compliant
Lead Shape	Gull-wing
Maximum Fall Time (ns)	25
Maximum Operating Supply Voltage (V)	18
Maximum Operating Temperature (°C)	70
Maximum Power Dissipation (mW)	760
Maximum Propagation Delay Time (ns)	75
Maximum Rise Time (ns)	25
Maximum Supply Current (mA)	4
Minimum Operating Supply Voltage (V)	4.5
Minimum Operating Temperature (°C)	0
Mounting	Surface Mount
Output Resistance (Ohm)	10
Packaging	Tube
Part Status	Active
PCB changed	16
Peak Output Current (A)	1.2(Typ)
PPAP	No
Standard Package Name	SOP
Supplier Package	SOIC W
Type	MOSFET
Typical Input High Threshold Voltage (V)	2.4(Min)
Typical Input Low Threshold Voltage (V)	0.8(Max)
Вес, г	0.67
