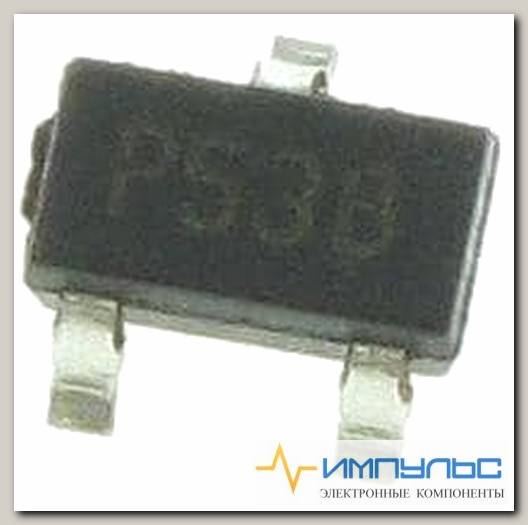

TC54VN4502ECB713 /Код si-876743

IC, VOLT DETECTOR, 4.5V, SOT23A; Threshold Voltage:4.5V; No. of Supervisors / Monitors:1Monitors; Supply Voltage Min:700mV; Supply Voltage Max:10V; Reset Type:Active-Low, Open-Drain; Digital IC Case:SOT-23A; No. of Pins:3Pins; Delay Time:200µs; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; Product Range:-; Automotive Qualification Standard:-; RoHS Phthalates Compliant:Yes; MSL:MSL 1 - Unlimited; SVHC:No SVHC (27-Jun-2018); Base Number:4502; Operating Temperature Range:-40°C to +85°C; Supply Current:1.1µA; Supply Voltage Range:700mV to 10V

Battery Backup Switching	Yes
Chip Enable Signals	No
Manual Reset	No
Monitored Supervisor Voltage	1.1 to 6(V)
Monitored Voltage 1 (Typ)	0.7 TO 10(V)
Mounting	Surface Mount
Number of Elements	1
Number of Voltage Supervisors	1
Operating Supply Voltage (Max)	10(V)
Operating Supply Voltage (Min)	0.7(V)
Operating Temp Range	-40C to 85C
Operating Temperature Classification	Industrial
Package Type	SOT-23A
Packaging	Tape and Reel
Pin Count	3
Power Dissipation	0.24(W)
Power Fail Detection	No
Programmable	Yes
Rad Hardened	No
Reset Active Time	0.2
Reset Threshold Voltage (Max)	4.59(V)
Reset Threshold Voltage (Min)	4.41(V)
Voltage Supervisor Type	Voltage Detector
Watchdog Timer	No
Automotive	No
ECCN (US)	EAR99
EU RoHS	Compliant
Maximum Operating Supply Voltage (V)	10
Maximum Operating Temperature (°C)	85
Maximum Power Dissipation (mW)	240
Maximum Reset Active Time (ms)	0.2
Maximum Reset Threshold Voltage (V)	4.59
Maximum Supply Current (uA)	1(Typ)
Minimum Operating Supply Voltage (V)	0.7
Minimum Operating Temperature (°C)	-40
Minimum Reset Threshold Voltage (V)	4.41
Monitored Voltage (V)	0.7 to 10
Number of Supervisors	1
Output Driver	Active Low/CMOS/Open Drain
Part Status	Active
PCB changed	3
PPAP	No
Supplier Package	SOT-23A
Type	Voltage Detector
Typical Reset Threshold Voltage (V)	4.5
Accuracy:	2%
Battery Backup Switching:	Backup
Brand:	Microchip Technology/Atmel
Factory Pack Quantity: Factory Pack Quantity:	3000
Manual Reset:	No Manual Reset
Manufacturer:	Microchip
Maximum Operating Temperature:	+85 C
Minimum Operating Temperature:	-40 C
Mounting Style:	SMD/SMT
Number of Inputs Monitored:	1 Input
Output Type:	Active Low, Open Drain
Overvoltage Threshold:	4.59 V
Package/Case:	SOT-23A-3
Packaging:	Reel, Cut Tape, MouseReel
Pd - Power Dissipation:	240 mW
Product Category:	Supervisory Circuits
Product Type:	Supervisory Circuits
Reset Delay Time:	200 us
Series:	TC54
Subcategory:	PMIC-Power Management ICs
Supply Voltage - Max:	10 V
Supply Voltage - Min:	0.7 V
Threshold Voltage:	4.5 V
Type:	Voltage Detectors
Undervoltage Threshold:	4.41 V
Watchdog Timers:	No Watchdog
