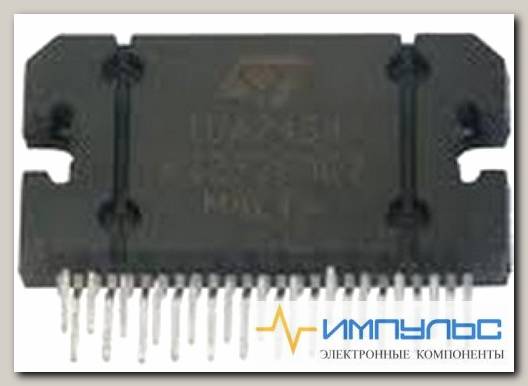

TDA7454, (Восстановленные. Проверено.) /Код si-833219

Микросхемы / Микросхемы для бытовой аппаратуры / Микросхемы для УНЧAUDIO AMPLIFIER, TYPE AB, 25W, FLEXIWATT; Output Power:25W; Amplifier Class:AB; No. of Channels:4 Channel; Supply Voltage Range:8V to 18V; Amplifier Case Style:Flexiwatt; No. of Pins:25Pins; Load Impedance:4ohm; Operating Temperature Min:-55°C; Operating Temperature Max:150°C; Product Range:-; Automotive Qualification Standard:-; MSL:-; SVHC:No SVHC (07-Jul-2017)

корпус	Flexiwatt25(vertical)
Audio Amplifier Function	Speaker
Audio Amplifier Output Configuration	4-Channel Stereo
Dual Supply Voltage (Max)	Not Required V
Dual Supply Voltage (Min)	Not Required V
Dual Supply Voltage (Typ)	Not Required V
Mounting	Through Hole
Operating Temp Range	-55C to 150C
Operating Temperature Classification	Military
Operational Class	Class-AB
Output Power (Typ)	60x4 W
Package Type	FLEXIWATT(Vertical)
Packaging	Rail/Tube
Pin Count	25
Power Dissipation	86 W
Power Supply Rejection Ratio	52 dB
Power Supply Requirement	Single
Rad Hardened	No
Rail/Rail I/O Type	No
Single Supply Voltage (Max)	18 V
Single Supply Voltage (Min)	8 V
Single Supply Voltage (Typ)	9/12/15 V
Total Harmonic Distortion	0.15
Вес, г	15
