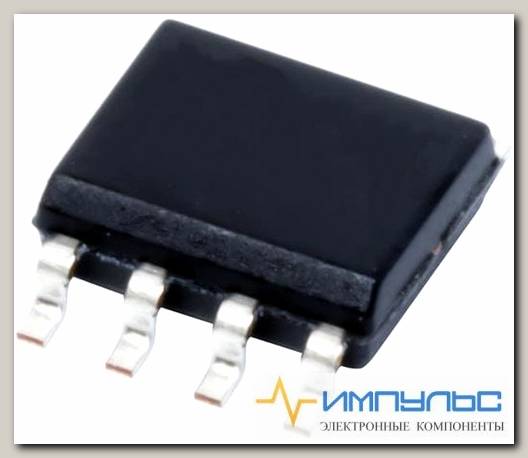

TL3016ID /Код si-382076

IC, COMPARATOR, SMD, 3016, SOIC8; Comparator Type:Precision; No. of Comparators:1 Comparator; Response Time:7.8ns; Supply Voltage Range:5V to ± 5V; Comparator Case Style:SOIC; No. of Pins:8Pins; IC Output Type:CMOS, MOS, Open Collector / Drain, TTL; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; Product Range:-; Automotive Qualification Standard:-; MSL:MSL 1 - Unlimited; SVHC:No SVHC (15-Jan-2019); Amplifier Case Style:SOIC; Base Number:3016; No. of Comparators:1; No.Comparators:1; Operating Temperature Range:-40°C to +85°C; Output Compatibility:TTL; Supply Current:10.6mA; Termination Type:Surface Mount Device

Brand	Texas Instruments
CMRR - Common Mode Rejection Ratio	97 dB
Comparator Type	Precision
Dual Supply Voltage	+/-5 V
Factory Pack Quantity	75
Features	Strobe
GBP - Gain Bandwidth Product	-
Height	1.58 mm
Ib - Input Bias Current	10 uA
Ios - Input Offset Current	0.6 mA
Length	4.9 mm
Manufacturer	Texas Instruments
Maximum Operating Temperature	+85 C
Minimum Operating Temperature	-40 C
Mounting Style	SMD/SMT
Number of Channels	1 Channel
Operating Supply Current	12.5 mA
Operating Supply Voltage	5 V to 10 V
Output Type	Push-Pull
Package / Case	SOIC-8
Packaging	Tube
Pd - Power Dissipation	725 mW
Product	Analog Comparators
Product Category	Analog Comparators
Reference Voltage	No
Response Time	7.8 ns
RoHS	Details
Series	TL3016
Shutdown	No Shutdown
Supply Type	Single, Dual
Supply Voltage - Max	10 V
Supply Voltage - Min	5 V
Technology	BiCMOS
Type	Low Power Comparator
Unit Weight	0.002677 oz
Vcm - Common Mode Voltage	1.25 V
Vos - Input Offset Voltage	3 mV
Width	3.91 mm
Base Product Number	TL3016 ->,
CMRR, PSRR (Typ)	97dB CMRR
Current - Input Bias (Max)	10Вµ,A @ В±5V
Current - Output (Typ)	20mA
Current - Quiescent (Max)	12.5mA
ECCN	EAR99
HTSUS	8542.39.0001
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mounting Type	Surface Mount
Number of Elements	1
Operating Temperature	-40В°C ~ 85В°C
Package	Tube
Propagation Delay (Max)	10ns
REACH Status	REACH Unaffected
RoHS Status	ROHS3 Compliant
Supplier Device Package	8-SOIC
Voltage - Input Offset (Max)	3mV @ В±5V
Voltage - Supply, Single/Dual (В±)	5V ~ 10V, В±2.5V ~ 5V
Brand:	Texas Instruments
CMRR - Common Mode Rejection Ratio:	80 dB
Comparator Type:	Precision
Dual Supply Voltage:	+/-5 V
Factory Pack Quantity: Factory Pack Quantity:	75
Features:	Strobe
Ib - Input Bias Current:	10 uA
Ios - Input Offset Current:	0.6 uA
Manufacturer:	Texas Instruments
Maximum Operating Temperature:	+85 C
Minimum Operating Temperature:	-40 C
Mounting Style:	SMD/SMT
Number of Channels:	1 Channel
Operating Supply Current:	12.5 mA
Operating Supply Voltage:	5 V to 10 V
Output Type:	Complementary
Package/Case:	SOIC-8
Packaging:	Tube
Pd - Power Dissipation:	725 mW
Product Category:	Analog Comparators
Product Type:	Analog Comparators
Product:	Analog Comparators
Propagation Delay Time:	10 ns
Reference Voltage:	No
Response Time:	7.8 ns
Series:	TL3016
Shutdown:	No Shutdown
Subcategory:	Amplifier ICs
Supply Type:	Single, Dual
Supply Voltage - Max:	10 V
Supply Voltage - Min:	5 V
Technology:	BiCMOS
Type:	Low Power Comparator
Vos - Input Offset Voltage:	3 mV
