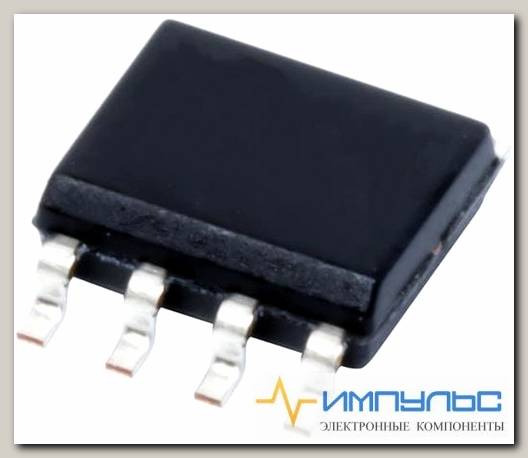

TLC2201ACD /Код si-864498

OP AMP, CMOS LOW NOISE, SMD, 2201; No. of Amplifiers:1 Amplifier; Bandwidth:1.9MHz; Slew Rate:2.7V/µs; Supply Voltage Range:± 2.3V to ± 8V; Amplifier Case Style:SOIC; No. of Pins:8Pins; Operating Temperature Min:0°C; Operating Temperature Max:70°C; Product Range:-; Automotive Qualification Standard:-; MSL:MSL 1 - Unlimited; SVHC:No SVHC (15-Jan-2019); Amplifer Supply Voltage:± 2.3V to ± 8V; Amplifier Type:CMOS; Base Number:2201; Gain Bandwidth:1.9MHz; I/O Type:Rail-Rail Outputs; IC Temperature Range:Commercial; Input Offset Voltage Max:0.2mV; No. of Amplifiers:1Amplifiers; Op Amp Type:Low Noise; Operating Temperature Range:0°C to +70°C; Supply Voltage + Nom:8V; Supply Voltage Max:8V; Supply Voltage Min:2.3V

Amplifier Type	Low Offset Amplifier
Brand	Texas Instruments
CMRR - Common Mode Rejection Ratio	90 dB to 110 dB
Dual Supply Voltage	+/-3 V, +/-5 V
en - Input Voltage Noise Density	18 nV/sqrt Hz
Factory Pack Quantity	75
GBP - Gain Bandwidth Product	1.9 MHz
Height	1.58 mm
Ib - Input Bias Current	60 pA
In - Input Noise Current Density	0.0006 pA/sqrt Hz
Input Type	Rail-to-Rail
Length	4.9 mm
Manufacturer	Texas Instruments
Maximum Dual Supply Voltage	+/-8 V
Maximum Operating Temperature	+70 C
Minimum Dual Supply Voltage	+/-2.3 V
Minimum Operating Temperature	0 C
Mounting Style	SMD/SMT
Number of Channels	1 Channel
Operating Supply Current	1 mA
Operating Supply Voltage	4.6 V to 16 V, +/-2.3 V to+/-8 V
Output Current per Channel	50 mA
Output Type	Rail-to-Rail
Package / Case	SOIC-8
Packaging	Tube
Pd - Power Dissipation	725 mW
Product	Precision Amplifiers
Product Category	Precision Amplifiers
RoHS	Details
Series	TLC2201A
Shutdown	No Shutdown
SR - Slew Rate	2.5 V/us
Supply Type	Single, Dual
Supply Voltage - Max	16 V
Supply Voltage - Min	4.6 V
Technology	LinCMOS
Tradename	LinCMOS
Unit Weight	0.002677 oz
Vcm - Common Mode Voltage	Negative Rail to Positive Rail-2.3 V
Voltage Gain dB	109.97 dB
Vos - Input Offset Voltage	0.2 mV
Width	3.91 mm
Amplifier Type:	Low Offset Amplifier
Brand:	Texas Instruments
CMRR - Common Mode Rejection Ratio:	110 dB
Dual Supply Voltage:	+/-3 V, +/-5 V
en - Input Voltage Noise Density:	12 nV/sqrt Hz
Factory Pack Quantity: Factory Pack Quantity:	75
GBP - Gain Bandwidth Product:	1.9 MHz
Ib - Input Bias Current:	1 pA
In - Input Noise Current Density:	0.0006 pA/sqrt Hz
Input Type:	Rail-to-Rail
Manufacturer:	Texas Instruments
Maximum Dual Supply Voltage:	+/-8 V
Maximum Operating Temperature:	+70 C
Minimum Dual Supply Voltage:	+/-2.3 V
Minimum Operating Temperature:	0 C
Mounting Style:	SMD/SMT
Number of Channels:	1 Channel
Operating Supply Current:	1.1 mA
Operating Supply Voltage:	4.6 V to 16 V, +/-2.3 V to+/-8 V
Output Current per Channel:	50 mA
Output Type:	Rail-to-Rail
Package/Case:	SOIC-8
Packaging:	Tube
Pd - Power Dissipation:	725 mW
Product Category:	Precision Amplifiers
Product Type:	Precision Amplifiers
Product:	Precision Amplifiers
Series:	TLC2201A
Shutdown:	No Shutdown
SR - Slew Rate:	2.7 V/us
Subcategory:	Amplifier ICs
Supply Type:	Single, Dual
Supply Voltage - Max:	16 V
Supply Voltage - Min:	4.6 V
Technology:	LinCMOS
Tradename:	LinCMOS
Vcm - Common Mode Voltage:	Negative Rail to Positive Rail-2.3 V
Voltage Gain dB:	109.97 dB
Vos - Input Offset Voltage:	80 uV
