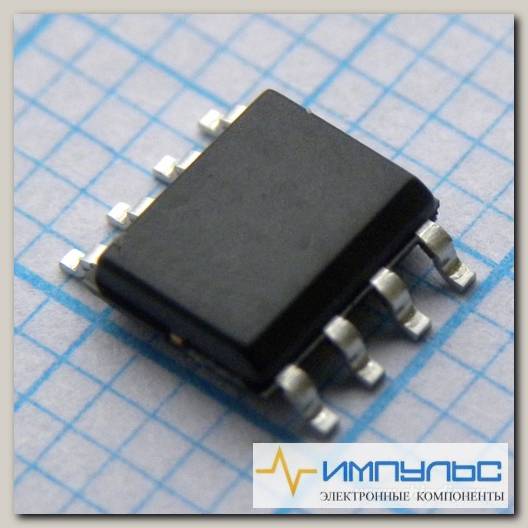

TLC3702CD /Код si-368126
- Артикул: si-368126
Микросхемы / Усилители и компараторы / КомпараторыКомпаратор сдвоенный низкое напряжение
| Корпус | so-8 |
| Base Product Number | TLC3702 ->, |
| CMRR, PSRR (Typ) | 84dB CMRR |
| Current - Input Bias (Max) | 5pA @ 5V |
| Current - Output (Typ) | 20mA |
| Current - Quiescent (Max) | 50Вµ,A |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mounting Type | Surface Mount |
| Number of Elements | 2 |
| Operating Temperature | 0В°C ~ 70В°C |
| Output Type | CMOS, Push-Pull, TTL |
| Package | Tube |
| Package / Case | 8-SOIC (0.154, 3.90mm Width) |
| Propagation Delay (Max) | 4.5Вµ,s |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Series | LinCMOSв„ў ->, |
| Supplier Device Package | 8-SOIC |
| Type | General Purpose |
| Voltage - Input Offset (Max) | 5mV @ 10V |
| Voltage - Supply, Single/Dual (В±) | 3V ~ 16V |
| Automotive | No |
| ECCN (US) | EAR99 |
| EU RoHS | Compliant |
| Lead Shape | Gull-wing |
| Manufacturer Type | Voltage Comparator |
| Maximum Input Bias Current (uA) | 0.000005(Typ)5V |
| Maximum Input Offset Voltage (mV) | 5 10V |
| Maximum Operating Supply Voltage (V) | 16 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Power Dissipation (mW) | 725 |
| Maximum Propagation Delay Time (ns) | 4500(Typ) |
| Maximum Quiescent Current (mA) | 0.04 5V |
| Maximum Single Supply Voltage (V) | 16 |
| Maximum Test Temperature (°C) | 70 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Single Supply Voltage (V) | 3 |
| Minimum Test Temperature (°C) | 0 |
| Mounting | Surface Mount |
| Number of Channels per Chip | 2 |
| Packaging | Tube |
| Part Status | Active |
| PCB changed | 8 |
| Pin Count | 8 |
| Power Supply Type | Single |
| PPAP | No |
| Process Technology | LinCMOS |
| Rail to Rail | No |
| Standard Package Name | SOP |
| Supplier Package | SOIC |
| Supplier Temperature Grade | Commercial |
| Typical CMRR (dB) | 84 |
| Typical Output Current (mA) | 20(Max) |
| Typical Single Supply Voltage (V) | 5 |
| Brand | Texas Instruments |
| CMRR - Common Mode Rejection Ratio | 84 dB |
| Comparator Type | General Purpose |
| Factory Pack Quantity | 75 |
| Ib - Input Bias Current | 30 pA |
| Ios - Input Offset Current | 1 nA |
| Manufacturer | Texas Instruments |
| Maximum Operating Temperature | +125 C |
| Minimum Operating Temperature | -55 C |
| Mounting Style | SMD/SMT |
| Number Of Channels | 2 Channel |
| Operating Supply Current | 20 uA |
| Operating Supply Voltage | 3 V to 16 V |
| Output Current Per Channel | 8 mA |
| Pd - Power Dissipation | 725 mW |
| Product | Analog Comparators |
| Product Category | Analog Comparators |
| Product Type | Analog Comparators |
| Reference Voltage | No |
| Response Time | 1.1 us |
| Shutdown | No Shutdown |
| Subcategory | Amplifier ICs |
| Supply Type | Single |
| Supply Voltage - Max | 16 V |
| Supply Voltage - Min | 3 V |
| Technology | LinCMOS |
| Vcm - Common Mode Voltage | -0.2 V to 14.5 V |
| Vos - Input Offset Voltage | 5 mV |
| GBP - Gain Bandwidth Product | - |
| Height | 1.58 mm |
| Length | 4.9 mm |
| RoHS | Details |
| Unit Weight | 0.002561 oz |
| Width | 3.91 mm |
| Вес, г | 0.2 |
