TLC3702CPW /Код si-378697
- Артикул: si-378697
TLC3702 Dual, Micropower, Push-Pull Outputs, LinCMOS Voltage Comparator
| Brand | Texas Instruments |
| CMRR - Common Mode Rejection Ratio | 84 dB |
| Comparator Type | General Purpose |
| Factory Pack Quantity | 2000 |
| GBP - Gain Bandwidth Product | - |
| Height | 1 mm |
| Ib - Input Bias Current | 30 pA |
| Length | 3 mm |
| Manufacturer | Texas Instruments |
| Maximum Operating Temperature | +125 C |
| Minimum Operating Temperature | -55 C |
| Mounting Style | SMD/SMT |
| Number of Channels | 2 Channel |
| Operating Supply Current | 20 uA |
| Operating Supply Voltage | 3 V to 16 V |
| Output Current per Channel | 8 mA |
| Output Type | Push-Pull |

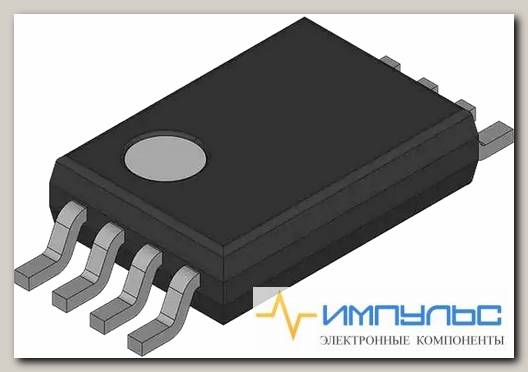

| Package / Case | TSSOP-8 |
| Packaging | Cut Tape |
| Pd - Power Dissipation | 1000 mW |
| Product | Analog Comparators |
| Product Category | Analog Comparators |
| Reference Voltage | No |
| Response Time | 1.1 us |
| RoHS | Details |
| Series | TLC3702 |
| Shutdown | No Shutdown |
| Supply Type | Single |
| Supply Voltage - Max | 16 V |
| Supply Voltage - Min | 3 V |
| Technology | LinCMOS |
| Type | Micro Power Comparator |
| Unit Weight | 0.001376 oz |
| Vcm - Common Mode Voltage | -0.2 V to 14.5 V |
| Vos - Input Offset Voltage | 5 mV |
| Width | 4.4 mm |
| Base Product Number | TLC3702 ->, |
| CMRR, PSRR (Typ) | 84dB CMRR |
| Current - Input Bias (Max) | 5pA @ 5V |
| Current - Output (Typ) | 20mA |
| Current - Quiescent (Max) | 50Вµ,A |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mounting Type | Surface Mount |
| Number of Elements | 2 |
| Operating Temperature | 0В°C ~ 70В°C |
| Package | Tube |
| Propagation Delay (Max) | 4.5Вµ,s |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Supplier Device Package | 8-TSSOP |
| Voltage - Input Offset (Max) | 5mV @ 10V |
| Voltage - Supply, Single/Dual (В±) | 3V ~ 16V |
