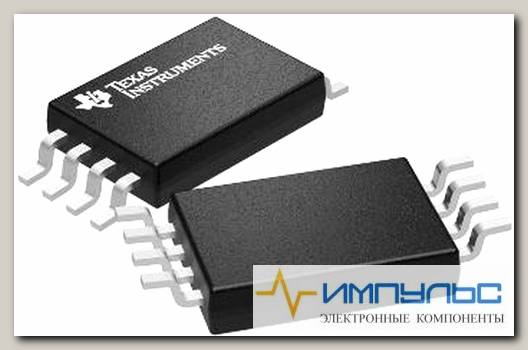

TLC372CPW, Comparator Dual R-R O/P ±8V/16V 8-Pin TSSOP Tube /Код si-376961
- Артикул: si-376961
Компаратор Дифференциальный CMOS, MOS, Открытый сток, TTL 8-TSSOP
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8542.39.00.01 |
| Lead Shape | Gull-wing |
| Package Height | 1.05(Max) |
| Package Width | 4.5(Max) |
| Package Length | 3.1(Max) |
| Mounting | Surface Mount |
| PCB changed | 8 |
| Manufacturer Type | Differential Comparator |
| Number of Channels per Chip | 2 |
| Process Technology | LinCMOS |
| Rail to Rail | Rail to Rail Output |
| Typical Response Time (us) | 0.65 |
| Typical Response Time Range (us) | 0.5 to 5 |
| Maximum Propagation Delay Time (ns) | 200(Typ) |
| Output Type | Open Drain/Collector |
| Maximum Operating Supply Voltage (V) | ±8|16 |
| Maximum Input Offset Voltage (mV) | 5@5V |
| Minimum Single Supply Voltage (V) | 3 |
| Typical Single Supply Voltage (V) | 5|9|12|15 |
| Maximum Single Supply Voltage (V) | 16 |
| Minimum Dual Supply Voltage (V) | ±1.5 |
| Typical Dual Supply Voltage (V) | ±3|±5 |
| Maximum Dual Supply Voltage (V) | ±8 |
| Maximum Input Bias Current (uA) | 0.000005(Typ)@5V |
| Typical Output Current (mA) | 20(Max) |
| Minimum Test Temperature (°C) | 0 |
| Maximum Quiescent Current (mA) | 0.3@5V |
| Maximum Test Temperature (°C) | 70 |
| Power Supply Type | Single|Dual |
| Minimum Operating Temperature (°C) | 0 |
| Maximum Operating Temperature (°C) | 70 |
| Packaging | Tube |
| Standard Package Name | SOP |
| Supplier Package | TSSOP |
| Pin Count | 8 |
| Base Product Number | TLC372 ->, |
| Current - Input Bias (Max) | 5pA @ 5V |
| Current - Output (Typ) | 20mA |
| Current - Quiescent (Max) | 400Вµ,A |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mounting Type | Surface Mount |
| Number of Elements | 2 |
| Operating Temperature | 0В°C ~ 70В°C |
| Package | Tube |
| Package / Case | 8-TSSOP (0.173, 4.40mm Width) |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Series | LinCMOSв„ў ->, |
| Supplier Device Package | 8-TSSOP |
| Type | Differential |
| Voltage - Input Offset (Max) | 5mV @ 5V |
| Voltage - Supply, Single/Dual (В±) | 3V ~ 16V, В±1.5V ~ 8V |
