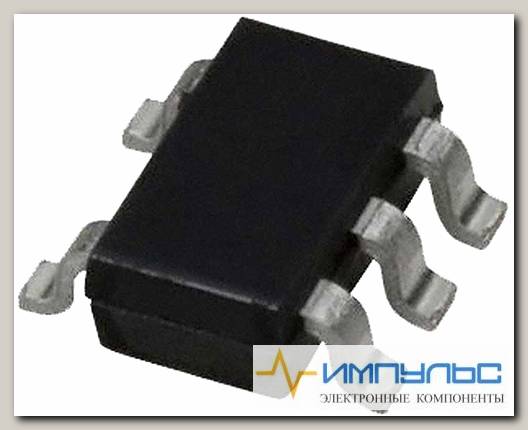

TLV70218DBVR /Код si-386726

МИКРОСХЕМЫ\Микросхемы питанияTLV702xx/TLV702xx-Q1 Low-IQ Low-Dropout RegulatorsTexas Instruments TLV702xx/TLV702xx-Q1 300mA Low-I Q, Low-Dropout Regulators (LDOs) are low quiescent current devices with excellent line and load transient performance. These TI LDOs are designed for power-sensitive applications. A precision bandgap and error amplifier provides overall 2% accuracy. Low output noise, very high power-supply rejection ratio (P SRR ), and low-dropout voltage make TLV702xx LDOs ideal for a wide selection of battery-operated handheld equipment. All device versions have thermal shutdown and current limit for safety. The TLV702xx-Q1 devices are AEC-Q100 qualified for automotive applications.

Корпус	SOT235
Входное напряжение	2…5.5 В
Выходное напряжение	1.8 В
Выходной ток	макс.:300 мА
Падение напряжения	вход-выход:220 мВ
Погрешность	установки выходного напряжения:2%
Рабочая температура	-40…+125 °,С
Ток	собственного потребления:30 мкА
Input Voltage MAX	5.5V
Maximum Operating Temperature	125в„ѓ(TJ)
Minimum Operating Temperature	-40в„ѓ
Number Of Outputs	1
Output Configuration	positive
Output Current	300mA
Output Type	Fixed
Output Voltage	1.8V
PSRR / Ripple Rejection - Typ	68dB(1kHz)
Quiescent Current	370uA(typ)
Voltage Dropout (Max)	375mV @ 300mA
Brand:	Texas Instruments
Dropout Voltage - Max:	375 mV
Dropout Voltage:	220 mV
Factory Pack Quantity: Factory Pack Quantity:	3000
Input Voltage, Max:	5.5 V
Input Voltage, Min:	2 V
Line Regulation:	1 mV
Load Regulation:	1 mV
Manufacturer:	Texas Instruments
Maximum Operating Temperature:	+125 C
Minimum Operating Temperature:	-40 C
Mounting Style:	SMD/SMT
Number of Outputs:	1 Output
Operating Temperature Range:	-4
Output Current:	300 mA
Output Type:	Fixed
Output Voltage Range:	1.2 V to 4.8 V
Output Voltage:	1.8 V
Package/Case:	SOT-23-5
Packaging:	Reel, Cut Tape, MouseReel
Polarity:	Positive
Product Category:	LDO Voltage Regulators
Product Type:	LDO Voltage Regulators
Product:	Linear Regulators
PSRR / Ripple Rejection - Typ:	68 dB
Quiescent Current:	35 uA
Series:	TLV70218
Subcategory:	PMIC-Power Management ICs
Type:	Low Quiescent Current Low Dropout Linear Regulator
Voltage Regulation Accuracy:	0.5%
