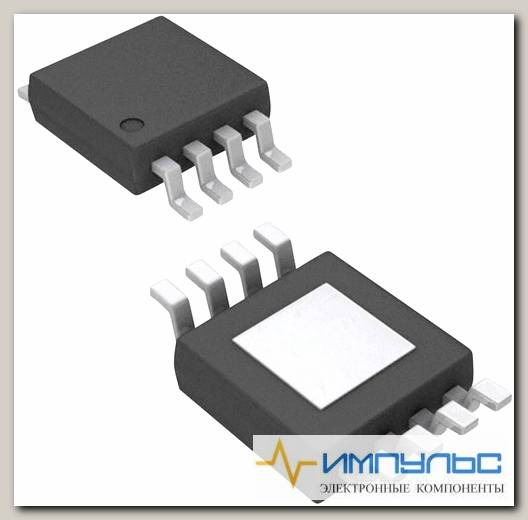

TPA711DGN /Код si-851788
- Артикул: si-851788
Integrated Circuits (ICs)\Linear - Amplifiers - AudioУсилитель IC 1-канальный (моно), класс AB 8-MSOP-PowerPad
| Base Product Number | TPA711 ->, |
| ECCN | EAR99 |
| Features | Depop, Short-Circuit and Thermal Protection, Shutd |
| HTSUS | 8542.33.0001 |
| Max Output Power x Channels @ Load | 700mW x 1 @ 8Ohm |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40В°C ~ 85В°C (TA) |
| Output Type | 1-Channel (Mono) |
| Package | Tube |
| Package / Case | 8-TSSOP, 8-MSOP (0.118, 3.00mm Width) Exposed Pa |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Supplier Device Package | 8-MSOP-PowerPad |
| Type | Class AB |
| Voltage - Supply | 2.5V ~ 5.5V |
| Audio - Load Impedance | 8 ohm |
| Brand | Texas Instruments |
| Class | Class-AB |
| Description/Function | Headphone/Speaker |
| Factory Pack Quantity | 2500 |
| GBP - Gain Bandwidth Product | 1.4 MHz |
| Height | 1.02 mm |
| Input Type | Single |
| Length | 3 mm |
| Manufacturer | Texas Instruments |
| Maximum Operating Temperature | +85 C |
| Minimum Operating Temperature | -40 C |
| Mounting Style | SMD/SMT |
| Number of Channels | 1 Channel |
| Operating Supply Current | 1.25 mA |
| Operating Supply Voltage | 2.5 V to 5.5 V |
| Output Power | 0.7 W |
| Output Signal Type | Differential, Single |
| Packaging | Reel |
| Pd - Power Dissipation | 2140 mW |
| Product | Audio Amplifiers |
| Product Category | Audio Amplifiers |
| PSRR - Power Supply Rejection Ratio | 85 dB |
| RoHS | Details |
| Series | TPA711 |
| Supply Current - Max | 2.5 mA |
| Supply Type | Single |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.5 V |
| THD plus Noise | 0.55% |
| Unit Weight | 0.00067 oz |
| Width | 3 mm |
