TS3021ILT /Код si-370141

Компараторы аналоговыеCOMPARATOR, 1.8/5V, RRI, 38NS, 5SOT23; Comparator Type:High Speed; No. of Comparators:1 Comparator; Response Time:-; Supply Voltage Range:2V to 5V; Comparator Case Style:SOT-23; No. of Pins:5Pins; IC Output Type:Push Pull; Operating Temperature Min:-40°C; Operating Temperature Max:125°C; Product Range:-; Automotive Qualification Standard:-; MSL:MSL 1 - Unlimited; SVHC:No SVHC (17-Dec-2015); Amplifier Case Style:SOT-23; No. of Comparators:1; No.Comparators:1; Operating Temperature Range:-40°C to +125°C; Supply Current:125µA

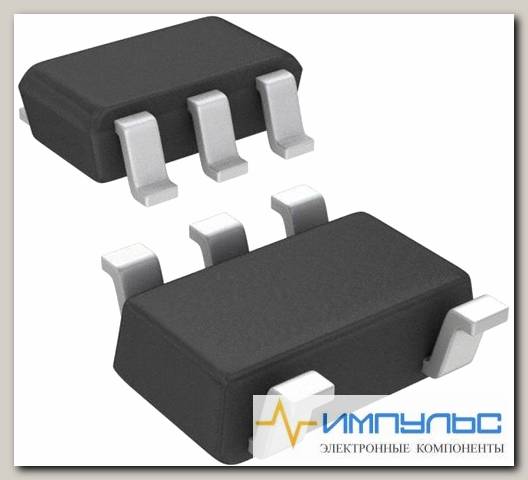

Корпус	SOT235
кол-во в упаковке	3000
Common Mode Rejection Ratio	79(dB)
Dual Supply Voltage (Max)	Not Required(V)
Dual Supply Voltage (Min)	Not Required(V)
Dual Supply Voltage (Typ)	Not Required(V)
Input Bias Current (Typ)	160(nA)
Input Offset Voltage	6(mV)
Mounting	Surface Mount
Number of Elements	1
Operating Temp Range	-40C to 125C
Operating Temperature Classification	Automotive
Output Type	Push-Pull
Package Type	SOT-23
Packaging	Tape and Reel
Pin Count	5
Power Dissipation	500(W)
Power Supply Rejection Ratio	69(dB)
Power Supply Requirement	Single
Rad Hardened	No
Rail to Rail	RAIL TO RAIL INPUT
Response Time	40(ns)
Single Supply Voltage (Max)	5(V)
Single Supply Voltage (Min)	2(V)
Single Supply Voltage (Typ)	3(V)
Strobe Capability	NO
Supply Current	0.115(mA)
Supply Current (Max)	0.115 mA
Technology	BiCMOS
Вес, г	0.071
