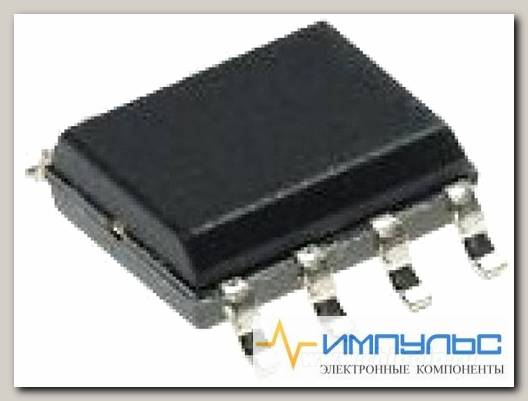

TS393CDT /Код si-365429
- Артикул: si-365429
Микросхемы / Усилители и компараторы / КомпараторыКомпаратор сдвоенный совместимость КМОП, выход открытый сток, питание 2.7-16В, потребляемый ток 9мкА, время задержки1.5мкс
| Корпус | so-8 |
| Automotive | No |
| ECCN (US) | EAR99 |
| EU RoHS | Compliant |
| Lead Shape | Gull-wing |
| Manufacturer Type | Voltage Comparator |
| Maximum Dual Supply Voltage (V) | ±8 |
| Maximum Input Bias Current (uA) | 0.000001(Typ)5V |
| Maximum Input Offset Voltage (mV) | 5 10V |
| Maximum Operating Supply Voltage (V) | ±8|16 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Quiescent Current (mA) | 0.04 5V |
| Maximum Single Supply Voltage (V) | 16 |
| Minimum Dual Supply Voltage (V) | ±1.35 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Single Supply Voltage (V) | 2.7 |
| Mounting | Surface Mount |
| Number of Channels per Chip | 2 |
| Output Type | Open Drain |
| Packaging | Tape and Reel |
| Part Status | Active |
| PCB changed | 8 |
| Pin Count | 8 |
| Power Supply Type | Single|Dual |
| PPAP | No |
| Process Technology | CMOS |
| Rail to Rail | No |
| Standard Package Name | SOP |
| Supplier Package | SO N |
| Typical CMRR (dB) | 71 |
| Typical Dual Supply Voltage (V) | ±5|±3 |
| Typical Output Current (mA) | 20(Max) |
| Typical Response Time (us) | 2.5 |
| Typical Response Time Range (us) | 0.5 to 5 |
| Typical Single Supply Voltage (V) | 3|5|9|12|15 |
| Brand | STMicroelectronics |
| Comparator Type | General Purpose |
| Factory Pack Quantity | 2500 |
| GBP - Gain Bandwidth Product | - |
| Ib - Input Bias Current | 600 pA |
| Ios - Input Offset Current | 300 pA |
| Manufacturer | STMicroelectronics |
| Maximum Operating Temperature | +70 C |
| Minimum Dual Supply Voltage | 1.35 V |
| Minimum Operating Temperature | 0 C |
| Mounting Style | SMD/SMT |
| Number of Channels | 2 Channel |
| Operating Supply Current | 20 uA |
| Operating Supply Voltage | 18 V |
| Output Current per Channel | 20 mA |
| Package / Case | SO-8 |
| Pd - Power Dissipation | 710 mW |
| Product | Analog Comparators |
| Product Category | Analog Comparators |
| Reference Voltage | No |
| Response Time | 1.5 us |
| RoHS | Details |
| Series | TS393 |
| Shutdown | No Shutdown |
| Supply Voltage - Max | 16 V |
| Supply Voltage - Min | 2.7 V |
| Vcm - Common Mode Voltage | Negative Rail to Positive Rail-1.5 V |
| Vos - Input Offset Voltage | 5 mV |
| Вес, г | 0.2 |
