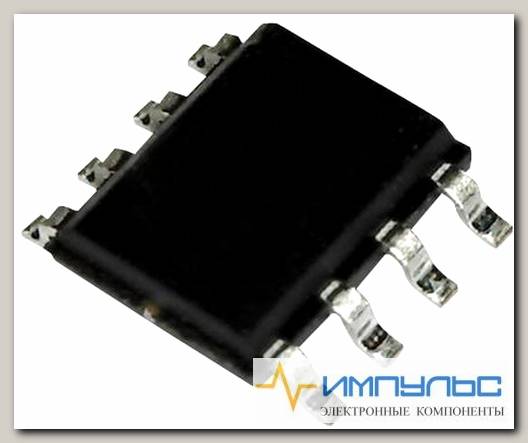

TS862IDT /Код si-379658

COMPARATOR, DUAL, 500NS, SOIC-8; Comparator Type:BiCMOS; No. of Comparators:2 Comparators; Response Time:500ns; Supply Voltage Range:2.7V to 10V; Comparator Case Style:SOIC; No. of Pins:8Pins; IC Output Type:Push Pull; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; Product Range:-; Automotive Qualification Standard:-; MSL:MSL 1 - Unlimited; SVHC:No SVHC (27-Jun-2018)

Common Mode Rejection Ratio	70(dB)
Dual Supply Voltage (Max)	Not Required(V)
Dual Supply Voltage (Min)	Not Required(V)
Dual Supply Voltage (Typ)	Not Required(V)
Input Bias Current (Typ)	0.3(nA)
Input Offset Voltage	15(mV)
Mounting	Surface Mount
Number of Elements	2
Operating Temp Range	-40C to 85C
Operating Temperature Classification	Industrial
Output Type	Push-Pull
Package Type	SO N
Packaging	Tape and Reel
Pin Count	8
Power Dissipation	710(W)
Power Supply Rejection Ratio	80(dB)
Power Supply Requirement	Single
Rad Hardened	No
Rail to Rail	RAIL TO RAIL INPUT
Response Time	20(ns)
Single Supply Voltage (Max)	10(V)
Single Supply Voltage (Min)	2.7(V)
Single Supply Voltage (Typ)	3/5/9(V)
Strobe Capability	NO
Supply Current	0.028(mA)
Supply Current (Max)	0.028 mA
Technology	BiCMOS
Voltage Gain in dB	240(dB)
Brand:	STMicroelectronics
Comparator Type:	Differential
Factory Pack Quantity: Factory Pack Quantity:	2500
Ib - Input Bias Current:	300 pA
Manufacturer:	STMicroelectronics
Maximum Operating Temperature:	+85 C
Minimum Operating Temperature:	-40 C
Mounting Style:	SMD/SMT
Number of Channels:	2 Channel
Operating Supply Current:	6 uA
Operating Supply Voltage:	3 V, 5 V, 9 V
Output Current per Channel:	5 mA
Output Type:	Push-Pull
Package/Case:	SOIC-8
Packaging:	Reel, Cut Tape, MouseReel
Pd - Power Dissipation:	710 mW
Product Category:	Analog Comparators
Product Type:	Analog Comparators
Product:	Analog Comparators
Propagation Delay Time:	2 us
Response Time:	2 us
Series:	TS862
Shutdown:	No Shutdown
Subcategory:	Amplifier ICs
Supply Voltage - Max:	10 V
Supply Voltage - Min:	2.7 V
Vos - Input Offset Voltage:	15 mV
Время Реакции	500нс
Диапазон Напряжения Питания	2.7В до 10В
Количество Выводов	8вывод(-ов)
Количество Компараторов	2 Компаратора
Максимальная Рабочая Температура	85 C
Минимальная Рабочая Температура	-40 C
Стиль Корпуса Компаратора	SOIC
Тип Выхода Микросхемы	Двухконтактный
Тип Компаратора	BiCMOS
Уровень Чувствительности к Влажности (MSL)	MSL 1-Безлимитный
кол-во в упаковке	2500
