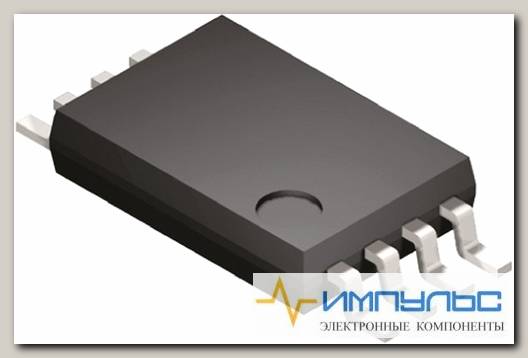

TSC1031IPT, TSC1031IPT , Current Sense Amplifier Dual, Single Buffered 8-Pin TSSOP /Код si-870512

Semiconductors\Amplifiers & Comparators\Current Sensing AmplifiersAccurate sensing of currents in a circuit is central to enhance application safety. Current Sensing Amplifiers have a voltage output that is proportional to the volt drop across a very low value resistor, usually in a high-current power rail.

Maximum Operating Supply Voltage	5.5 V
Maximum Operating Temperature	+125 °C
Maximum Supply Current	480 ?A
Minimum CMRR	90dB
Minimum Operating Supply Voltage	2.7 V
Minimum Operating Temperature	-40 °C
Mounting Type	Surface Mount
Number of Channels per Chip	1
Output Type	Buffered
Package Type	TSSOP
Pin Count	8
Power Supply Type	Dual, Single
Typical Dual Supply Voltage	-2.1 > 65V
Typical Single Supply Voltage	2.9 > 70 V
Width	3.1mm
Amplifier Type	Current Sense
Brand	STMicroelectronics
CMRR - Common Mode Rejection Ratio	90 dB
Factory Pack Quantity	4000
Manufacturer	STMicroelectronics
Mounting Style	SMD/SMT
Number of Channels	2 Channel
Operating Supply Current	300 uA
Package / Case	TSSOP-8
Packaging	Reel
Product	Current Sense Amplifiers
Product Category	Current Sense Amplifiers
RoHS	Details
Series	TSC1031
Supply Voltage - Max	5.5 V
Supply Voltage - Min	2.7 V
Unit Weight	0.005573 oz
Vos - Input Offset Voltage	1100 uV
Вес, г	5
