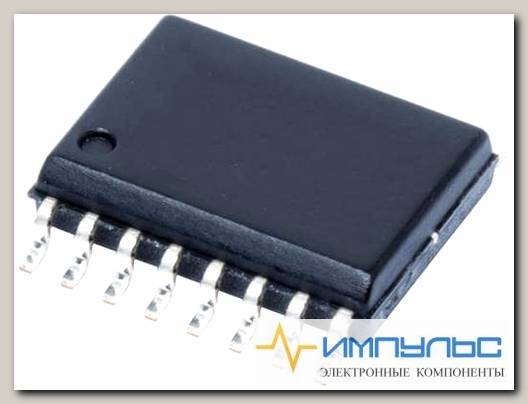

UC2846DW /Код si-203020

PWM CONTROLLER CURRENT MODE, SOIC16; Input Voltage:15V; Output Voltage:13.5V; Output Current:500mA; Supply Voltage Min:8V; Supply Voltage Max:40V; Controller IC Case Style:SOIC; No. of Pins:16Pins; Frequency:500kHz; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; Product Range:-; Automotive Qualification Standard:-; MSL:MSL 2 - 1 year; SVHC:No SVHC (15-Jan-2019); Base Number:2846; Controller Type:PWM; Operating Temperature Range:-40°C to +85°C; Output Type:Totem Pole; Power Dissipation Pd:1W; Supply Voltage Range:8V to 40V; Termination Type:Surface Mount Device

Brand	Texas Instruments
Duty Cycle - Max	50%
Factory Pack Quantity	40
Fall Time	50 ns
Manufacturer	Texas Instruments
Maximum Operating Temperature	+85 C
Minimum Operating Temperature	-40 C
Mounting Style	SMD/SMT
Number of Outputs	2 Output
Operating Supply Current	17 mA
Operating Supply Voltage	7 V to 40 V
Operating Temperature Range	-40 C to+85 C
Output Current	500 mA
Output Voltage	5.1 V
Package / Case	SOIC-16 Wide
Packaging	Tube
Product Category	Switching Controllers
Rise Time	50 ns
RoHS	Details
Series	UC2846
Switching Frequency	450 kHz
Type	Current Mode PWM Controllers
Unit Weight	0.016709 oz
Вид монтажа	SMD/SMT
Время нарастания	50 ns
Время спада	50 ns
Выходное напряжение	5.1 V
Выходной ток	500 mA
Диапазон рабочих температур	40 C to + 85 C
Категория продукта	Коммутационные контроллеры
Количество выходов	2 Output
Максимальная рабочая температура	+ 85 C
Минимальная рабочая температура	40 C
Подкатегория	PMIC - Power Management ICs
Рабочее напряжение питания	7 V to 40 V
Рабочий ток источника питания	17 mA
Рабочий цикл (макс.)	50 %
Размер фабричной упаковки	40
Серия	UC2846
Тип	Current Mode PWM Controllers
Тип продукта	Switching Controllers
Топология	Boost, Flyback, Forward, Full-Bridge, Half-Bridge,
Торговая марка	Texas Instruments
Упаковка	Tube
Упаковка / блок	SOIC-16
Частота переключений	450 kHz
Чувствительный к влажности	Yes
Base Product Number	UC2846 ->,
Clock Sync	Yes
Control Features	Current Limit, Enable, Frequency Control, Soft Sta
Duty Cycle (Max)	50%
ECCN	EAR99
Frequency - Switching	500kHz
Function	Step-Up, Step-Up/Step-Down
HTSUS	8542.39.0001
Moisture Sensitivity Level (MSL)	2 (1 Year)
Mounting Type	Surface Mount
Operating Temperature	-40В°C ~ 85В°C (TA)
Output Configuration	Positive
Output Phases	1
Output Type	Transistor Driver
Package	Tube
REACH Status	REACH Unaffected
RoHS Status	ROHS3 Compliant
Supplier Device Package	16-SOIC
Synchronous Rectifier	Yes
Topology	Boost, Flyback, Forward Converter, Full-Bridge, Ha
Voltage - Supply (Vcc/Vdd)	6.95V ~ 40V
Вес, г	0.77
