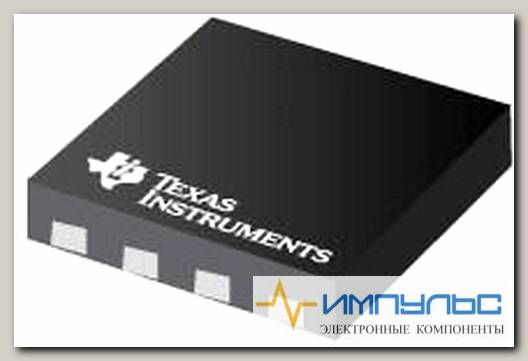

UCC27528DSDT, Gate Drivers Dual 5A Hi-Spd Lo Side Gate Dvr IC /Код si-703019

Semiconductors\Power Management ICs\Gate DriversUCC2752x/UCC2752x-Q1 Low-Side Gate DriversTexas Instruments UCC2752x/UCC2752x-Q1 Dual 5A High-Speed Low-Side Gate Drivers are capable of effectively driving MOSFET and IGBT power switches. TI UCC2752x gate drivers use a design that inherently minimizes shoot-through current. The UCC2752x devices are capable of delivering high-peak current pulses of up to 5A source and 5A sink into capacitive loads along with rail-to-rail drive capability and extremely small propagation delay typically 13ns. UCC2752x gate drivers feature matched internal propagation delays between the two channels, making these TI devices ideal for applications requiring dual-gate drives with critical timing, such as synchronous rectifiers. This also enables connecting two channels in parallel to effectively increase current drive capability or driving two switches in parallel with a single input signal. The UCC2752x-Q1 devices are AEC-Q100 qualified for automotive applications.

Brand:	Texas Instruments
Configuration:	Non-Inverting
Factory Pack Quantity: Factory Pack Quantity:	250
Fall Time:	6 ns
Features:	Negative Voltage Handling on Input
Logic Type:	CMOS
Manufacturer:	Texas Instruments
Maximum Operating Temperature:	+140 C
Minimum Operating Temperature:	-40 C
Moisture Sensitive:	Yes
Mounting Style:	SMD/SMT
Number of Drivers:	2 Driver
Number of Outputs:	2 Output
Operating Supply Current:	125 uA
Operating Supply Voltage:	4.5 V to 18 V
Output Current:	5 A
Package/Case:	WSON-8
Packaging:	Reel, Cut Tape, MouseReel
Product Category:	Gate Drivers
Product Type:	Gate Drivers
Product:	IGBT, MOSFET Gate Drivers
Rise Time:	7 ns
Series:	UCC27528
Subcategory:	PMIC-Power Management ICs
Supply Voltage - Max:	18 V
Supply Voltage - Min:	4.5 V
Technology:	Si
Type:	Low-Side
Вес, г	0.01
