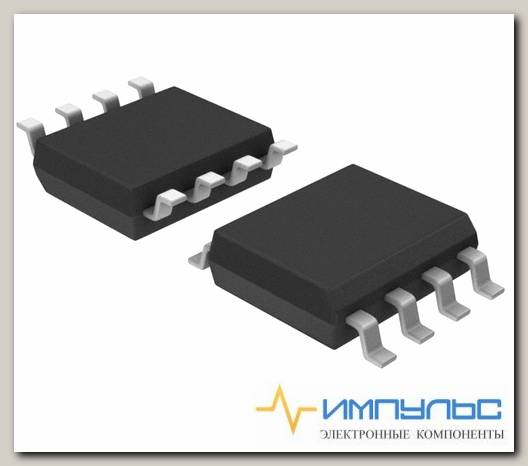

UCC2804D /Код si-204012

PWM CONTROLLER, SMD, 2804, SOIC8; Input Voltage:-; Output Voltage:5.075V; Output Current:1A; Supply Voltage Min:0V; Supply Voltage Max:10V; Controller IC Case Style:SOIC; No. of Pins:8Pins; Frequency:1MHz; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; Product Range:-; Automotive Qualification Standard:-; MSL:MSL 1 - Unlimited; SVHC:No SVHC (15-Jan-2019); Base Number:2804; Controller Type:PWM; Input Current:500µA; Input Voltage Max:12V; Operating Temperature Range:-40°C to +85°C; Output Energy per Cycle:20µJ; Output Type:Totem Pole; Power Dissipation Pd:650mW; Power Supply IC Type:PWM controller; Supply Voltage Range:0V to 10V; Termination Type:Surface Mount Device

Brand	Texas Instruments
Duty Cycle - Max	50%
Factory Pack Quantity	75
Fall Time	44 ns
Manufacturer	Texas Instruments
Maximum Operating Temperature	+85 C
Minimum Operating Temperature	-40 C
Mounting Style	SMD/SMT
Number of Outputs	1 Output
Output Current	1000 mA
Package / Case	SOIC-8
Packaging	Tube
Product Category	Switching Controllers
Rise Time	41 ns
RoHS	Details
Series	UCC2804
Switching Frequency	1000 kHz
Topology	Boost, Flyback, Forward
Unit Weight	0.002561 oz
Base Product Number	UCC2804 ->,
Control Features	Frequency Control
Duty Cycle	49%
ECCN	EAR99
Fault Protection	Current Limiting
Frequency - Switching	Up to 1MHz
HTSUS	8542.39.0001
Internal Switch(s)	No
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mounting Type	Surface Mount
Operating Temperature	-40В°C ~ 85В°C (TA)
Package	Tube
REACH Status	REACH Unaffected
RoHS Status	ROHS3 Compliant
Supplier Device Package	8-SOIC
Voltage - Start Up	12.5V
Voltage - Supply (Vcc/Vdd)	8.3V ~ 12V
