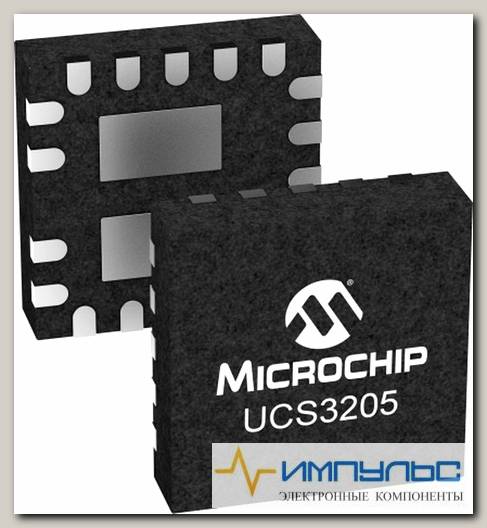

UCS3205-E/Q8A, POWER LOAD SW, ACTIVE HIGH, 22V, 125DEGC /Код si-396770

The Microchip UCS3205 is 5A, 22V bi-directional load switch with Fast Role Swap (FRS) capability, configurable over-current limiting, configurable auto-recovery or latch off fault response, over-voltage lockout, back-voltage protection, slew rate control, quick output discharge and a scaled analog output of the forward current passing through the switch.

Maximum Operating Current	5A
Maximum Operating Supply Voltage	22 V
Number of Channels	1
Number of Outputs	1
Package Type	VQFN-19
Pin Count	8
Power Switch Type	Bi-Directional Load Switch
Switch On Resistance	30m?
Вес, г	1.315
