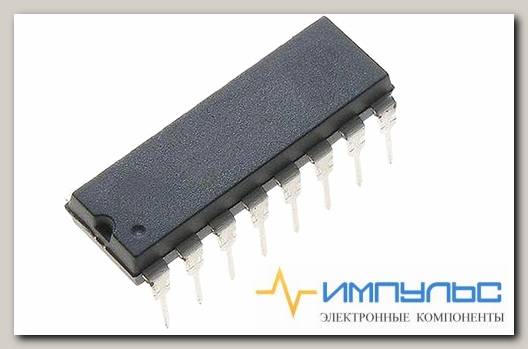

ULN2002A /Код si-689255

DARLINGTON ARRAY 7NPN, 2002, DIP16; Transistor Polarity:NPN; Collector Emitter Voltage V(br)ceo:50V; Power Dissipation Pd:-; DC Collector Current:500mA; DC Current Gain hFE:1000hFE; Transistor Case Style:DIP; No. of Pins:16Pins; Operating Temperature Max:85°C; Product Range:-; Automotive Qualification Standard:-; MSL:-; SVHC:No SVHC (17-Dec-2015); Base Number:2002; Current Ic Continuous a Max:500mA; Device Marking:ULN2002A; IC Generic Number:2002; Input Type:PMOS, 14V / 25V; Input Voltage Max:25V; Input Voltage Min:14V; Module Configuration:Seven; No. of Channels:7Channels; No. of Transistors:7; Operating Temperature Min:-20°C; Operating Temperature Range:-20°C to +85°C; Output Current Max:500mA; Output Voltage Max:50V; Supply Voltage Max:25V; Supply Voltage Min:14V; Transistor Type:Power Darlington

Base Part Number	ULN2002A
Current - Collector (Ic) (Max)	500mA
Current - Collector Cutoff (Max)	50Вµ,A
DC Current Gain (hFE) (Min) @ Ic, Vce	1000 @ 350mA, 2V
Frequency - Transition	-
Manufacturer	STMicroelectronics
Mounting Type	Through Hole
Operating Temperature	-40В°C ~ 85В°C(TA)
Package / Case	16-DIP(0.300, 7.62mm)
Packaging	Tube
Part Status	Active
Power - Max	-
Series	-
Supplier Device Package	16-DIP
Transistor Type	7 NPN Darlington
Vce Saturation (Max) @ Ib, Ic	1.6V @ 500Вµ,A, 350mA
Voltage - Collector Emitter Breakdown (Max)	50V
Вид монтажа	Through Hole
Высота	4.59 mm
Длина	20 mm
Категория продукта	Транзисторы Дарлингтона
Конфигурация	Array 7
Максимальная рабочая температура	+ 85 C
Максимальный постоянный ток коллектора	0.5 A
Минимальная рабочая температура	20 C
Напряжение коллектор-эмиттер (VCEO), макс.	50 V
Подкатегория	Transistors
Полярность транзистора	NPN
Размер фабричной упаковки	1000
Серия	ULN2002
Тип продукта	Darlington Transistors
Торговая марка	STMicroelectronics
Упаковка	Tube
Упаковка / блок	PDIP-16
Ширина	7.1 mm
Base Product Number	ULN2002 ->,
ECCN	EAR99
HTSUS	8541.29.0095
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Other Related Documents	http://www.st.com/web/catalog/sense_power/FM1968/C
Package	Tube
REACH Status	REACH Unaffected
RoHS Status	ROHS3 Compliant
Вес, г	1.81
