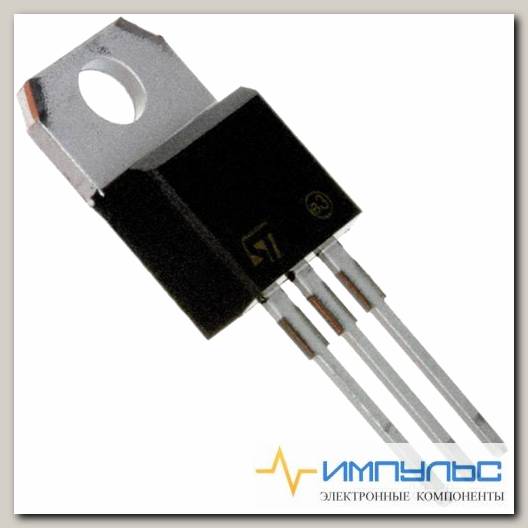

VNP10N07-E /Код si-703949

MOSFET OMNIFET 70V 10A TO-220; Transistor Polarity:N Channel; Continuous Drain Current Id:10A; Drain Source Voltage Vds:70V; On Resistance Rds(on):0.1ohm; Rds(on) Test Voltage Vgs:10V; Threshold Voltage Vgs:3V; Power Dissipation Pd:50W; Transistor Case Style:TO-220; No. of Pins:3Pins; Operating Temperature Max:150°C; Product Range:-; Automotive Qualification Standard:-; MSL:-; SVHC:No SVHC (17-Dec-2015); Current Id Max:10A; Operating Temperature Min:-55°C; Operating Temperature Range:-55°C to +150°C; Termination Type:Through Hole; Transistor Type:Power MOSFET; Voltage Vds Typ:70V; Voltage Vgs Rds on Measurement:10V

Brand	STMicroelectronics
Current Limit	10 A
Factory Pack Quantity	1000
Manufacturer	STMicroelectronics
Maximum Operating Temperature	+150 C
Minimum Operating Temperature	-40 C
Mounting Style	Through Hole
Number of Outputs	1 Output
Off Time - Max	400 ns
On Resistance - Max	100 mOhms
On Time - Max	100 ns
Operating Supply Voltage	3 V to 18 V
Package / Case	TO-220-3
Packaging	Tube
Pd - Power Dissipation	50 W
Product	Load Switches
Product Category	Power Switch ICs-Power Distribution
RoHS	Details
Series	VNP10N07-E
Type	Low Side
Вес, г	2.68
