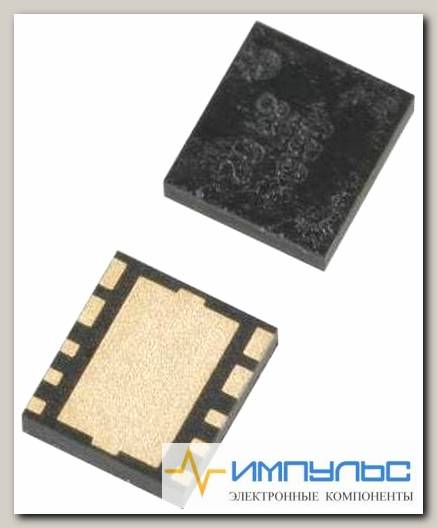

XC6194BANNER-G, Power Load Distribution Switch, High Side, 1 Output, 6V, 0.19ohm, USP-B06, 8-Pin /Код si-393887

XC6194 Smart Load Switches Torex Semiconductor XC6194 Smart Load Switches are ideal for battery-operated devices using push-button switches. The 10nA leak current at shutdown is low, allowing the IC reduce the battery's discharge and creating longer shelf-life for devices. The XC6194 also has a power good function (the PG pin) for properly adjusting the timing of turning on the DC-DC regulator or other downstream system. The IC is equipped with output capacitor inrush current limiting function and short-circuit protection function, realizing an intelligent load switch. XC6194 push button load switch reduces the power consumed during post-load wait and when power is off and allows the power to be shut down when there is a system freeze.

Brand:	Torex Semiconductor
Factory Pack Quantity: Factory Pack Quantity:	5000
Manufacturer:	Torex Semiconductor
Maximum Operating Temperature:	+85 C
Minimum Operating Temperature:	-40 C
Mounting Style:	SMD/SMT
Number of Outputs:	1 Output
On Resistance - Max:	460 mOhms
On Time - Max:	200 ms
Operating Supply Voltage:	1.8 V to 6 V
Output Current:	1 A
Package/Case:	USP-8B06
Packaging:	Reel, Cut Tape, MouseReel
Pd - Power Dissipation:	1240 mW
Product Category:	Power Switch ICs-Power Distribution
Product Type:	Power Switch ICs-Power Distribution
Product:	Load Switches
Series:	XC6194
Subcategory:	Switch ICs
Supply Voltage - Max:	6 V
Supply Voltage - Min:	1.8 V
Type:	Load Switch
Вес, г	0.001
